4FT Plywood Core Veneer Rotary Spindleless Peeling Machine for Hard Wood

Product Details

Product Description

Product Description
4FT High Speed Plywood Veneer Peeling Machine
1.Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.
2. Technical Parameters

DESCRIPTION	UNIT	PARAMETERS
Length of log	mm	970mm--1270mm
Max log diameter	mm	Max 500mm Min33mm/22mm
Rotary cutting thickness range	mm	0.5mm--7.0mm
Peeling speed	m/min	30--100M/Min
The main auxiliary motor power	KW	Single roller motor 5.5KW×2 Cuting motor 1.5KW Conveyor 1.5KW Double roller motor 7.5KW×2 Feed motor 11KW Total power 40KW
Redecer type selection		R Host R helical gear reducer
Main function	smc 120MM7.5+7.5KW. 106MM7.5+7.5KW

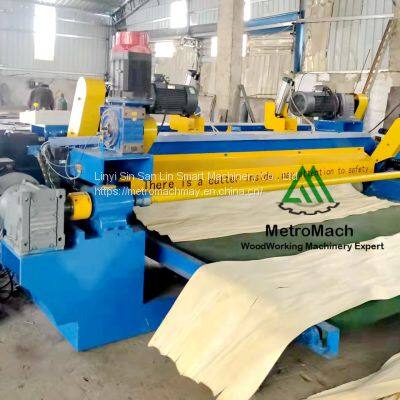

3.More Pictures:
