grinder machines MQ8260Ax16 Crankshaft Grinding Machine price for Metal

Product Description

Product Description
MQ8260A Crankshaft Grinding Machine
General Description:
This machine is intended for use in the automobile, tractor, diesel engine works and their repairing shops to grind both crankshaft journals and crankshaft arms.
Structure Features:
1. Flexible belt drive for speed change-3 speeds of work spindle obtainable;
2. Two types of chucks on headstock and tailstock——called union chuck and cross chuck (see pictures at the back), provided for users to select according to their own preference;
3. Friction clutch used in the headstock transmission chain for easy adjustment;
4. Table traverse operated both by hand and by power;
5. Rapid approach & withdrawal of wheel carriage effected by hydraulic means;
6. The wheel spindle being 80mm in diameter has good rigidity and strength;
7. Rolling guideways employed for movement of wheel carriage;
8. Table and wheel carriage lubricated automatically by oil pump circulation;
9. A digital device for cross feed display, and a hydrostatic & dynamic wheel spindle available as optional elements.

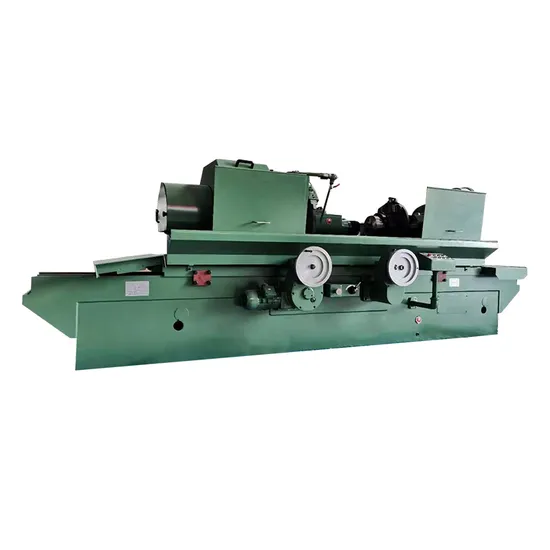

MQ8260A Appearance:
Flat table, double layer

Specification		Model	MQ8260Ax16
		type	580x1600
Max. work swing diameter		mm	580
Max. work length		mm	1600
Max. swing over table		mm	580
Work diameter ground with steady rest		mm	30-100
Throw of crankshaft		mm	110
Max. work length ground: in 3 jaw chuck		mm	1400
Between centers		mm	1600
Max. work weight		kg	120
Headstock center height		mm	300
Headstock work speed		r/min	25,45,95
Wheel head Max.cross movement		mm	185
Wheel head rapid approach & withdraw		mm	100
Wheel feed per turn of cross feed hand wheel		mm	1
Wheel head per grad of cross feed hand wheel		mm	0.005
Grinding wheel spindle speed		r/min	740,890
Grinding wheel peripheral speed		m/sec.	25.6-35
Grinding wheel size(O.D. x width x bore)		mm	900x32x305
Table traverse of per turn hand wheel	Coarse	mm	5.88
	Fine	mm	1.68
Table sway: taper (18 /100)			angle5° taper9/100
Table sway per grad of scale(taper 1: 50)			angle1° taper1/100
Overall capacity of motors		kw	9.82
Overall dimensions(L* W * H)		mm	4166x2037x1584
Weight		kg	6000

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
