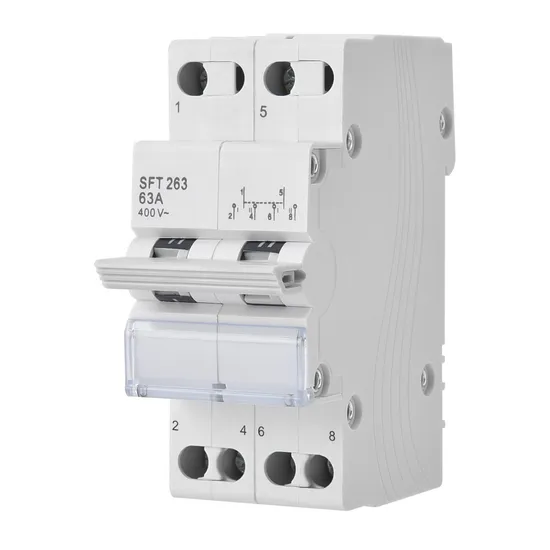

Modular Changeover Switch 2p 63A Sf263 Sf463

Product Description

Product Description
BSF Manual Changeover Switch
BSF series modular changeover switch is a new generation of power changeover switch independently developed by our company. It realizes dual power switching up to 63A with only the size of mini circuit breaker case, which has the advantages of small size, high cost efficiency, high reliability, long life and easy installation.
A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator.
Features

Modular strcture design

Standard DIN rail mounting

Maximum current upto 63A

With transparent label window

Mechanical lifespan>100000times

Eletrical lifespan>5000times

Product Parameters

Electrical Characteristics
Modular size		1 Module	2 Module		4 Module
Model		BSF125	BSF225	BSF240	BSF463
Thermal current Ith(40ºC)		25A	25A	40A	63A
Operation frequency		50/60Hz
Rated voltage(AC)		230V
Rated insulation voltage(Ui)		440V			500V
Impulse withstand voltage(Uimp)		4kV	6kV		4kV
Operation temperature		-20 - 50ºC
Operation Currents(Ie)
Rated voltage(AC)	Load duty category
400V	AC 22A	25A	25A	40A	63A
400V	AC 22B	25A	25A	40A	63A
Short circuit characteristic
Withstand current(Icw)	IEC 60947-3	375A/1S		600A/1S	945/1S
Short circuit current(Ics)	EN 60669	3kA	6kA	N/A	N/A
Mechanical characteristic
Rigid cable section		35mm2	25mm2
Flexible cable section		10mm2	16mm2
Tightening torque		1.8Nm
Protection degree		IP20
Mechanical lifespan		100000times
Electrical lifespan		5000times

Installation Instructions
BSF263
BSF463
Detailed Photos

---
