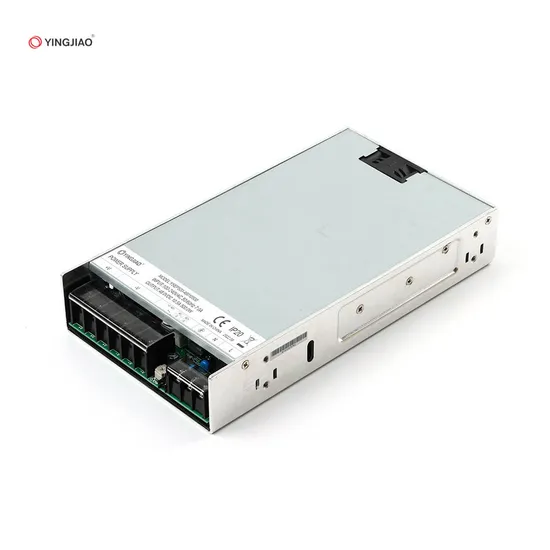

320W Regulated Switching Power Supply Factory Direct 12V DC Centralized LED Strips Driver

Product Description

320W Regulated Switching Power Supply 12V DC Centralized LED Strips Driver
Product Description Features :
1. Universal AC input range 2. Built-in active PFC function 3. Protection:Short circuit/Overload/Over voltage/Over temperature 4. Cooling by Built-in DC fan
5. 100% full load burn-in test
6. 3 years warranty Applications:
-Industrial automation machinery
-Industrial control system

Model No.	YSEP320-00564000	YSEP320-01226660	YSEP320-01521330	YSEP320-02413330	YSEP320-0486660
DC VOLTAGE	5 V	12V	15V	24V	48V
Rated Current	64A	26.66A	21.33A	13.33A	6.66A
Rated Power(Max)	320W	320W	320W	320W	320W
Ripple & Noise(Max)	150	150	150	150	240
Input Voltage	90 ~ 264VAC 127 ~ 370VDC
Inrush Current	40A at 230V AC
Efficiency	83.00%	88.00%	88.50%	89.00%	90.00%
Working Temperature	-20 ~ +70ºC (Refer to "Derating Curve")
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Protection	Short Circuit/Over Load/Over Voltage/Over Temperature
Connection	terminal blocks
