Compact Dual Shaft Shredder for Small Scale Recycling Projects Double Shaft Shredder

Product Description

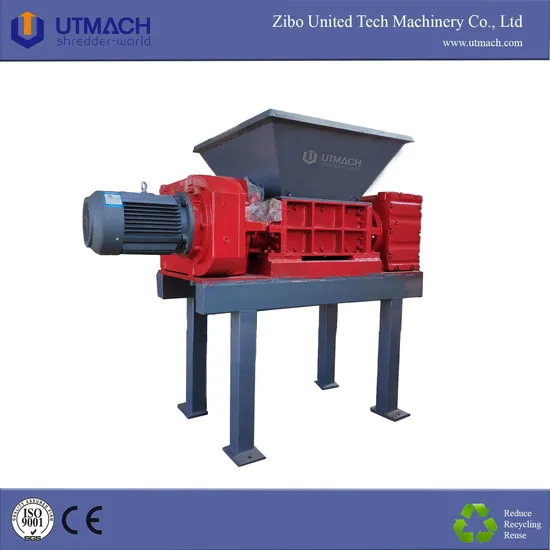

D series Double shaft shredder
Product Description
Introduction >>
D series Double shaft shredder from United Tech Machinery is designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel. Pallets, etc. And particularly well suited to the size reduction of bulky or voluminous materials which could include contamination such as metals or stones. Depending on input material and the following process the shredded material can be used directly or go into the next setp of size reduction. It can efficient to increase the bulk density and decrease the transportation cost. It si widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry, etc.
D series double shaft shredder from United Tech Machinery are designed to operate at slower speeds, utilising high torque and the tearing, crushing & shearing actions between counter rotating, opposing blades. This results in minimial power consumption and reduced noise when compared with other types of shredders, whilst still achieving high throughput rates and low maintenance costs.

Advantage >> Plastics - Reclaimed Material, Production Waste Paper - Documents, Mill Waste Electronic Scrap - WEEE Directive Materials / E-Waste Tyres - Car, 4×4, Light Commercial, Truck & OTR Wood - Pallets, Furniture, Board Packaging Materials - Cardboard Metals - Aluminium, Copper, Steel (Drums, Sheet etc), ELV Body Shells Textiles - Clothing, Carpet
Applications >>

These machines are particularly suited to the size reduction of bulky materials. Unlike higher speed shredders. Double shaft shredder can be used for reducing tougher materials such as metals and contaminated waste streams. With the function of PLC system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming, and can be guarded to prevent access to moving parts therefore ensuring safe operation.

Item	Model	Cutting Chamber size (mm)	Rotor Blade Diameter (mm)	Weight (kgs)
Heavy Duty Double Shaft Shredder	D3280	650*800	320	4000
	D32100	650*1000	320	5200
	D32120	650*1200	320	5400
	D32150	650*1500	320	5700
	D35120	680*1200	350	6000
	D35150	680*1500	350	6500
	D40100	825*1000	400	8000
	D40120	825*1200	400	8500
	D40150	825*1500	400	10000
	D40180	825*1800	400	12000
	D43120	900*1200	430	8500
	D43150	900*1500	430	11000
	D43180	900*1800	430	13500
	D45120	930*1200	450	12000
	D46180	950*1800	460	12500
	D52120	1100*1200	520	12000
	D52150	1100*1500	520	14000
	D52160	1100*1600	520	13000
	D52180	1100*1800	520	16000
	D62140	1300*1400	620	15000
	D62180	1300*1820	620	20000
	D62210	1300*2100	620	23000
	D72180	1524*1804	743	24000
	D72240	1524*2400	743	26000

Note:
1. The voltage and motor power supply can be selected by the customer's specific requirements.
2. The shredder capacity can be influenced by the material composition and output size. We provide Customized Machines.
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
FAQ:
The question you want to know Q1:How about the shipping and package? a. we arrange shipment usually according to your special requirements. b. Usually plywood package. Or according to customer's requirements. Q2:How about the quality of machines? Our machines adopt advanced technology. Moreover, we carry out strict supervision during productionand make sure every finished product with high quality. Q3:Which kind of payment is available for us? We provide video guidance, instructions, if the solution can not be solved we will go to the site to guide the operation Q4:What about your Plastic crushing machine quality? Our factory has 5 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation. Feel free to contact us any time with questions, please. We are waiting for you!

---
