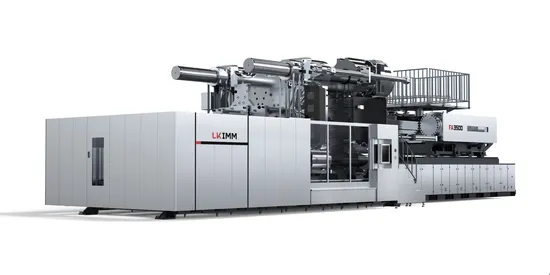

Lk Forza-III 2500 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customers service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production.
Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
Technical Parameter List

	ITEM	UNIT	FA2500
Shooting Part	Shot Weight(ps)	g	22970	25670	30010
	Screw Diameter	mm	175	185	200
	Injection Volume	cm^3	25240	28210	32970
	Injection Pressure	Mpa	162.9	145	124.7
	Screw L/D Ratio	L/D	25.1	23.7	22
	Injection Rate	cm^3/s	1790	2000	2330
	Screw Speed	r/min	75
	Hopper Capacity	L	400
Clamping Part	Clamping Force	KN	25000
	Die Height(Min-Max)	mm	800-1800
	Max.Daylight	mm	3800
	Space Between Tie Bars	mm	1900*1700
	Ejector Stroke	mm	550
	Ejector Force	KN	660
Others	Pump Motor Capacity	KW	47.7*4
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	3500
	Heating Capacity	KW	179

Products Display
Showroom Review
Factory Review

---
