Network Router Ne40e-M2h Cr5b0bkp0377 Chassis AC Components Netengine Ethernet Industrial Router

Product Description

Product Description

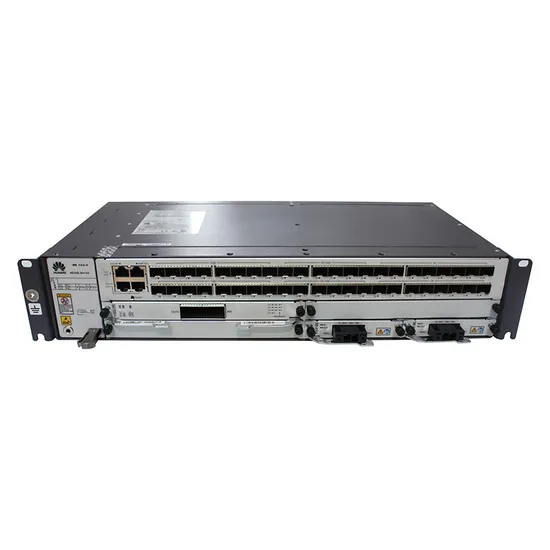

NE40E-M2 service routers
CR5B0BKP0377: NE40E-M2H Integrated Chassis Components
HUA WEI NE40E-M2 series devices are high-end Ethernet products running the versatile routing platform (VRP). They provide access, aggregation, and transport for metro Ethernet services.
HUA WEI NE40E-M2 series devices use the hardware-based forwarding mechanism and run the versatile routing platform (VRP). They feature carrier-class reliability, full-line-rate forwarding, well-designed QoS management, powerful service processing capabilities, and good scalability.
HUA WEI NE40E-M2 series devices also provide strong network access, Layer 2 switching, and Ethernet over MPLS (EoMPLS) transmission capabilities. They also support rich interface types and provide broadband access, triple play of voice, video, and data on fixed networks, IP private line, and VPN services. HUA WEI NE40E-M2 series devices can work with Hua wei NE, CX, and ME series devices to set up a hierarchical metro Ethernet that provides rich services for customers.
Technical specification
1.Hardware Specifications Item Specification

Cabinet installation standards	ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)]	88.1 mm x 442 mm x 220 mm (3.47 in. x 17.40 in. x 8.66 in.)
Chassis height [U]	2U
Weight without packaging [kg(lb)]	9.1 kg (20.06 lb)
Weight without packaging (full configuration) [kg(lb)]	DC: 10.7 kg (23.59 lb) AC: 11.9 kg (26.24 lb)
Typical power consumption (with configuration) [W]	DC: 487 W AC: 525 W
Typical heat dissipation (with configuration) [BTU/hour]	DC: 1580 BTU/hour AC: 1703.3 BTU/hour
MTBF [year]	23 year
MTTR [hour]	2 hour
Availability	0.999990074
CPU	16-core, 2.0 GHz
SDRAM	16 G
Flash memory	128 MB
Storage	4 GB
Power supply mode	DC AC HVDC
Rated input voltage [V]	DC: -48 V/-60 V AC: 200 V to 240 V/100 V to 127 V dual live wires HVDC: 240 V
Input voltage range [V]	DC: -48 V/-72 V AC: 180 V to 264 V HYDC: 188 Vdc to 290 Vdc
Maximum input current [A]	DC: 18 A AC: 5.4 A HVDC: 4.8 A
Maximum input cable size [mm²]	DC: 6mm^2. 4mm^2 (1-15 meters) recommended AC: 1.5mm^2
Front-end circuit breaker/fuse [A]	DC: ≥20 A AC: ≥6 A HVDC: ≥6.3 A
Heat dissipation mode	Air cooling
Airflow direction	From left to right
Noise at normal temperature (acoustic power) [dB(A)]	< 72 dB (meeting the ETSI 72 dBA standard)
Number of slots	6
Number of service board slots	2
Switching capacity	960 Gbit/s
Maximum number of physical ports on the entire device	84
Maximum number of 100GE ports	2
Maximum number of 50GE ports	4
Maximum number of 40GE ports	2
Maximum number of 10GE ports	48
Maximum number of GE ports	68
Redundant MPUs	Fixed-configuration, not pluggable
Redundant network processing units	Fixed-configuration, not pluggable
Redundant power supply	1+1
Redundant fans	If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C.
Long-term operating temperature [°C(°F)]	0°C(33.8°F) to 45°C(113°F)
Short-term operating temperature [°C(°F)]	AC: -5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158 °F)
Long-term operating relative humidity [RH]	5% RH to 90% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)

2.Ordering Information

Description	Model
NE40E-M2H Integrated Chassis Components	CR5B0BKP0377
