China Diesel Self Loading Diesel Concrete Pump with Mixer Self Loading Concrete Mixer with Pump

US$3,500.00
1-4 Pieces
US$1,200.00
5+ Pieces

Basic Info.

Model NO.
YG-20, YG-30. YG-40, YG-60
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
CE
Condition
New
Color
Yellow
Product Name
Concrete Pump
Concrete Pump Type
Diesel/Electric
Motor Power
45kw
Maximum Outlet Pressure
23MPa
Maximum Particle Size of Aggregate
50mm
Diameter of Conveying Pipe
100 (80) mm
Model
Yg-10/Yg-20/Yg-30/Yg-40
Transport Package
Wooden Box Package
Specification
1750*950*1150 mm
Trademark
YG Machinery
Origin
China Henan
Production Capacity
1000set/Year

Product Description

Product Description

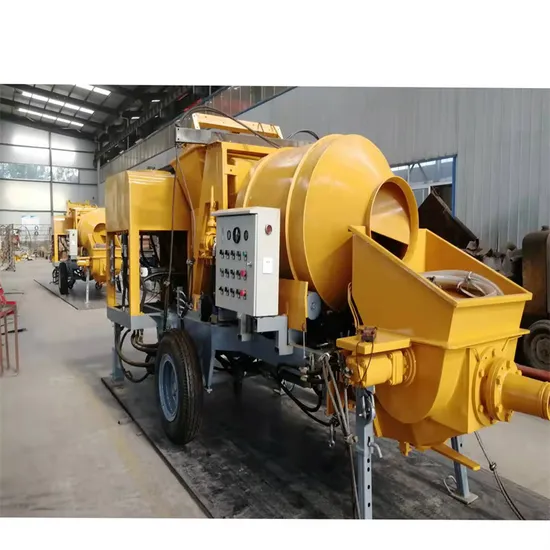

CONCRETE PUMP
Also called trailer mounted concrete pump or concrete trailer pump, is the kind of small concrete pump mounted on the move able trailer to to convey concrete to hard to access flexibly. YG brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.

Detailed Photos
Product Parameters
Model
 YG-10
 YG-20
 YG-30
 YG-40
Motor power
 15kw
 22KW
 37KW
 45KW
Work efficiency
 6m³/h
 12m³/h
 15-18m³/h
 20-22m³/h
Maximum pressure
 15mpa
 18mpa/5mpa
 15/18mpa
 23mpa
Aggregate size
 0.5-1.5cm
 0.5-2cm
 ≤20mm
 ≤20mm
Vertical conveying distance
20m
40m
80m
120m
Horizontal conveying distance
50 meters
80m
160m
260m
Diameter of conveying pipe
 80mm
 80mm
 φ80 (100) mm
 φ100 (80) mm
Whole machine weight
 600kg
 1600kg
 2200kg
 2400kg
Dimensions
 1800x700x1100mm
 3400x1200x1600mm
 3800x1500x1600mm
 4000x1500x1550mm


Application
Certifications
Packaging & Shipping
Company Profile
