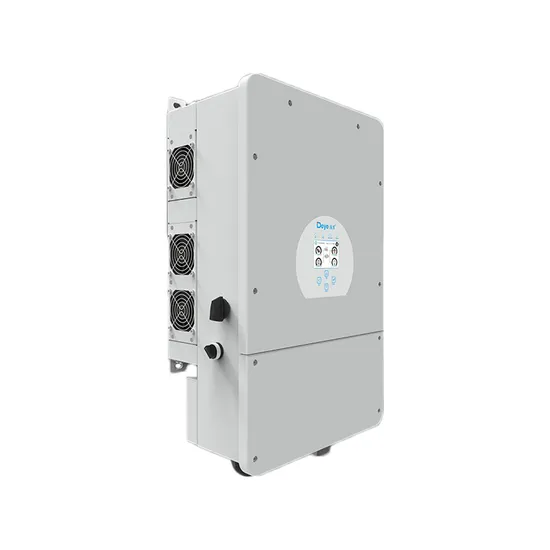

| Model | SUN-3.6K-SG01/03LP1-EU | SUN-5K-SG01/03LP1-EU | SUN-8K-SG01LP1-US/EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 90A | 120A | 190A |
| Max. Discharging Current (A) | 90A | 120A | 190A |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | YES | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 4680W | 6500W | 10400W |
| PV Input Voltage (V) | 370V (100V~500V) | ||
| MPPT Range (V) | 125~425V | ||
| Full Load DC Voltage Range | 240~425V | ||
| Start-up Voltage (V) | 150V | ||
| PV Input Current (A) | 13A+13A | 13A+13A | 22A+22A |
| No.of MPPT Trackers | 2 | ||
| No.of Strings Per MPPT Tracker | 1+1 | 1+1 | 2+2 |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) | 3600W | 5000W | 8000W |
| Max. AC Output Power (W) | 3960W | 5500W | 8800W |
| Peak Power (off grid) | 2 times of rated power, 10 S | ||
| AC Output Rated Current (A) | 15.7A | 21.7A | 33.4A / 35A |
| Max. AC Current (A | 18A | 25A | 36.7A / 38.5A |
| Max. Continuous AC Passthrough (A) | 35A | 35A | 50A |
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Voltage | 50 / 60Hz; 120 / 240Vac (split phase), 208Vac (2 / 3 phase), 230Vac (1phase) | ||
| Grid Type | Split phase; 2 / 3 phase; Single Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | 97.60% | 97.60% |
| Euro Efficiency | 96.50% | 96.50% | 97.00% |
| MPPT Efficiency | 99.90% | 96.50% | 99.90% |
| Protection | |||
| PV Input Lightning Protection | Integrated | ||
| Anti-islanding Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge protection | DC Type II / AC Type II | ||
| Certifications and Standards | |||
| Grid Connection Standard | EN50549-1, CEI 0-21, IEC61727, IEC62116, IEC60068, IEC61683, ABNT NBR 16149, ABNT NBR 16150, AS4777.2, VDE 4105, XP C15-712-3, RD1699, UNE 206006 IN, UNE 206007-1 IN | ||
| Safety EMC / Standard | IEC62040-1,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11, IEC61000-3-12, IEC61000-4-16,IEC61000-4-18,IEC61000-4-29 | ||
| General Data | |||
| Operating Temperature Range (ºC) | -25~60ºC, >45ºC Derating | ||
| Cooling | Natural cooling | Smart cooling | |
| Noise (dB) | <30dB | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 20.5 | 32 | |
| Size (mm) | 330W×580H×232D | 420W×670H×233D | |
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
