Cap Injection Machine for 5L, 10L Water Bottles

Product Description

Product Description
Injection Machine are widely applied to various manufacturing areas such as industrial plastic products,daily necessities,packaging industry,electronic products,ect.YJPT type is especially used for making PET preform,greatly raise the working efficiency of manufacturing machines and obviously imporove the quality of products.

Detailed Photos

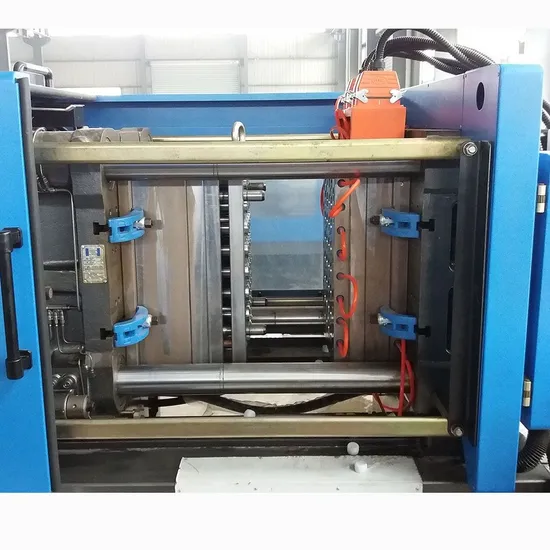

cap injection machine for 5L,10L water bottles
Product Parameters

Injection Molding machine	GM-1320A	1Set
Hopper Dryer	50Kg	1unit
Hopper Dryer	200Kg	1unit
Auto loader	350KG/HR	2units
Water Chiller	5HP	1unit
Crusher	PC-300	1unit
Molds	45mm,4cav	1unit

main parameters:

MODEL/	GM-1320
INJECTION UNIT/		A	B
Screw diameter/	mm	38	40
Shot size(theoretical)/	Cm³	210	228
Shot weight/	g	188	205
Injection pressure/	Mpa	176	160
Injection rate/	g/s	95	100
Screw L/D ratio/	L/D	22.8	21.7
Screw speed/	r.p.m	0-190
Nozzle Diameter/	Srmm	10
CLAMPING/
Clamp tonnage/	KN	1320
Toggle stroke/	mm	350
Mould Thickness/	mm	150-420
Space between tie-bars/	mm	410X375
Ejector stroke/	mm	135
Ejector tonnage/	KN	50
Ejector number/	Piece	5
Hole Diameter/	mm	100
OTHERS/
Heat power/	KW	8.2
Max. pump pressure/	MPa	16
Pump motor power/	KW	13
Valve Size/	mm	10
Machine dimension/	m	4.5X1.6X1.7
Machine weight/()	t	3.9
Oil tank capacity()	L	200

Assistant machinery
Hopper Dryer

Model	Diameter(mm)	Extemal size	Capacity(kg)	Heater Power(kw)
50kg	430mm	840X540X1030mm	50kg	4.8
200kg	700mm	1250X850X1480mm	200kg	10

3)Auto loader

Model			350kg
Motorl		Type	Carbon Brush
		Specification	1100W
Converying capacity			350kg/hr
Static wind pressure (MAX)			1500mmAq
Filter			185mmX90H
Volume of Material Hopper			6L
Inside Diameter of conveying Pipe			38mm
External size	Main Body L W H		480x310x430mm
	Material Hopper L W H		430x440x295mm
weight	Main Body L W H		15.5kg
	Material Hopper L W H		5kg

4) Chiller air

Specifications		5HP
Coiling capacity	Kacl/h	12040
Compressor		ALL-closed Vorticity
Compressor power	kw	4.4
Refrigerant		R22
Chilled water pump power	kw	0.75
Max flow rate of chilled water	L/min	120
Max pressure	M	9
Flow water inlet and outlet pipe		1"
Cooling fan power	Kw	0.5
Size length	MM	1100
Size width	MM	700
Size height	MM	1400
Water tank capa	L	88
Weight	Kg	290

5) Crusher

MODEL	PC-300
Power KW	5.5
Quantity of rotating blades	9
Quantity of fixed blades	2
Rotate speed r/min	800
Screen size MM	10
Weight KG	480
Max breaking capacity KG	200-300
Size of feeding inlet mm	300x210
External size mm	1100x800x1200

---
