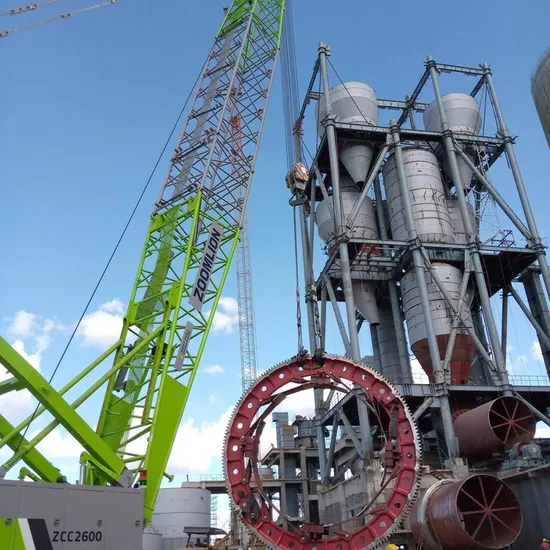

New Construction Machinery Zoomlion Zcc2600 260 Tons Crawler Crane for Sale

Product Description

New Construction Machinery ZOOMLION ZCC2600 260 Tons Crawler Crane for Sale
EFFICIENT, QUICK AND SAFETY
The mechanism operating speed up 20%, and the speed of each mechanism don't slow down while operating 2 functions simultaneously;
Time of erecting the whole crane is less than 6 hours;
Omni-directional real-time LMI and monitoring system, to ensure safety operation.

CONVENIENT, COMFORTABLE AND INTELLIGENCE
The max. Single transport weight is 30.5t, transport width is 3m;
Omni-directional vehicle information platform, real time monitoring equipment operation,
The IOT intelligent interaction system make the mobile service come true.
Full view cabin, buttons and switches are all within reach, all-around air conditioner form a comfortable operating space.

Item Unit Value Remarks

Maximum lifting capacity × radius			t × m	260 × 5
Deadweight of crane with basic boom			t	210
Length of main boom		S-boom length	m	20-83
		SL-boom length	m	86-95
F-jib length			m	12-30
Max.lifting capacity on fixed jib			t	34
F-jib angle			.	10,30
Max. length of heavy duty boom with fixed jib			m	77+30
W-jib Length			m	21-60
Max. lifting capacity on luffing jib			t	73.5
S-boom angle( for SW boom configuration)			.	65-85
Max. length of heavy duty boom with luffing jib			m	62+60
Single rope speed of winches	Hoisting winch 1		m/min	130	on the 6th rope layer
	Hosting winch 2		m/min	120	on the 6th rope layer
	Main boom derricking winch		m/min	80× 2	on the 6th rope layer
Slewing speed			rpm	0-1.2
Traveling speed			km/h	0-1.0
Max.gradeability			%	30
Ground pressure			MPa	0.115
Transport weight of max.single unit			t	32	Excluding hoisting winches,titling-back support of main boom.A-frame and derricking mechanism
Rear counterweight			t	83.7
Central counteweight			t	32
Engine	Manufacturer			US Cummins
	Rated power/rotational speed		Kw/rpm	227/2000
	Max. output torque/rotational speed		Nm/rpm	1505/1400
	Emission standard			U.S.EPA Tier 3 and EU Stage III A

---
