Product Description
Product Description

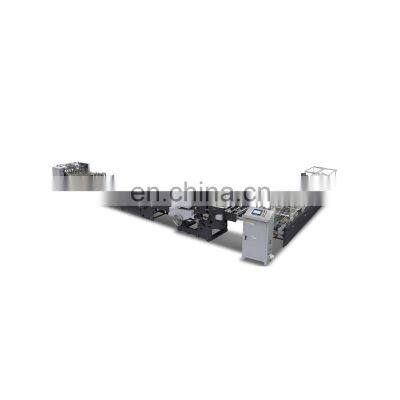

MODEL:KL-450/1240A
1,The characteristics of the product
KL-450/1240A type automatic paper bag machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.Its technique process is about:the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press horizontal line with rolling press device and then make one-side glue,automatic press vertical line ,automatic top folding ,M size fold and bag tube forming ,automatic turning and press horizontal line,automatic panching holes and open bottom,make glue and press togther and finally output finished bag products.
Automatic
Creasing
2,Shorten the cycle time
We set new standards to cut down the cycle time .Rapid cycle time improves capacity and lower production cost.KORO machine is one of the fastest ones among its like products.
120-180MINS
Plat-making Time Only Needs 2-3 Hours,
And The Perfect Non-stop Operation Is Well Ahead of The similar Machine,To Win More Time And Create More Value.
3,Minimum wear and cost
Our engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.
5‰
The waste is strictly controlled within
5‰ to save costs and reduce losses
4,High Quality
1)Reduce Power
3.7KW
For the power consumption,the main motor of KORO paper bag making machine is only 3.7kw,which is much lower than similar machines 10-20kw.Our machine is with the characteristics of reducing power consumption,paper sving costs,creating profits and more environmental protection.
2)Fastening
12.9Grades
High-end devices for the machine,even for each bolt,which using 12.9grades high strength bolts of more stess and more impact resistance.
3) Cooperation
NHK,SCHNEIDER,OMRON,MISIMI ETC.
From bearings to electrical apparatus,KORO company all use the international well -know high-quality brands,such as NHK,SCHNEIDER ETC.The machine performatce is more stable,mor efficient.
5,The applicable paper materials
Brown paper,copperplate paper,white-plate paper,white paperboard and grey paperboard etc(including laminting paper)
Brown paper Copperplate White-plate paper White paperboard Grey paperboard
6,Woring procedure
Auto feed→ press horizontal line→ guling→auto vertical line→top fold→
fold" M" face→ tube→automatic turning→press horizontal line→
Holes panching →bottom folding→Bottom pressing→guling→bag output
7,Paper bag sketch map
8,Main Technical Parameters
| Width scope of bag faca | 260-450mm(10.24-17.72 inch) |
| Organ height | 100-170mm(3.94-6.70 inch) |
| Canister length of the paper bag | 380-600mm(14.96-23.62 inch) |
| Paper width | 600-1240mm(23.62-48.82 inch) |
| Paper length | 380-600mm(14.96-23.62 inch) |
Paper weight range with unit | Kraft paper(yellow brown and wihile brown):120-200gArt paper+PP peritoneum:157-250gWhite paperboard:180-250gGrey paperboar+PP:150-250g |
Product speed
|
40-65pieces/min |
Glue type | Watery glue(sticking the side can increase heat melting glue system |
Total power | 15KW
Voltage :380V
Frequency:50HZ
with 4wires 3phases |
| Total weight | 10T
|
| Overall dimension(L*W*H) | 15000*2100*1700MM |
Remark:the mechanical speeds are different due to the different factors like paper quality,gram weightscope,printing result,whether stick with PP film or not,quality of sticking agnet,paper size,climate and workshop environment.
9,Configuration List
| Configuration | Brand Model | Origin | Remark |
| Bearing | NSK | Japan | |
| Linear bearing | NSK | Japan | |
| Vacuum Pump | ORION
| Japan | |
| Pneumatic element | Shannaisi | Shanghai | |
| Belt | Siegling | German | |
| Needle bearing | IKO | Japan | |
| Switch | Schneider | France | |
| Contactor | Schneider | France | |
| POM Gear | Misimi | Japan | |
| Main motor | ABB | Switzerland | |
| Push button | Schneider | France | |
| Limit switch | Omron | Japan | |
| P L C | Omron | Japan | |
| Photoswitc | Omron | Japan | |
| Lower switch | Schneider | France | |
| Touch screen | Weinview | Taiwan | 10.4Inch |
| Frequency conversion | Omron | Japan | |
According to the requirement of product optimization configuration, our company may adjust the suppliers/origins of some parts appropriately without prior notice.
>>
