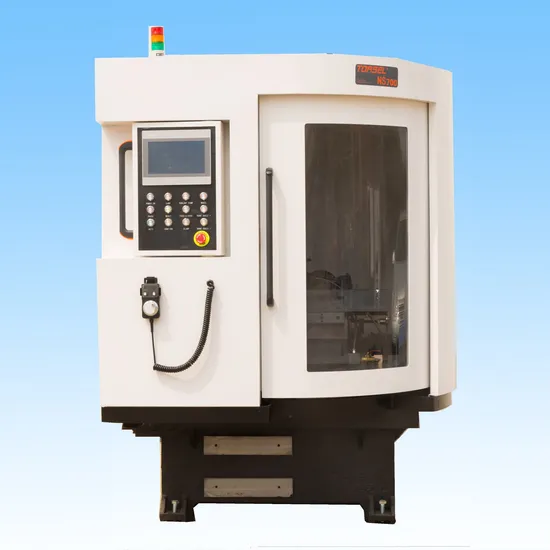

Oscillation Grinding Mode Tct Circular Saw Blade Side Sharpener

US$999.00-28,000.00 1 unit (MOQ)

Basic Info.

Model NO.
NS700
Type
Tool Grinding Machine
Processing Object
Tct Circular Saw Blade
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Grinding Surface
Teeth Side
Weight
1900kg
Precison
<0.02
Power
4.5kw
Speed
4~20mm/S
Saw Diameter
110~710mm
Plate Thickness
0.5~8mm
Bore Diameter
12~120mm
Pitch
2~65mm
Side Angle
5~ -5
Wheel Size
80~125mm*32mm
Wheel Speed
5000r/Min
Transport Package
PE Bag and Wooden Case
Specification
1900 X1590 X1920mm
Trademark
torsel
Origin
China
HS Code
8460310000
Production Capacity
100units/Month

Product Description

Oscillation Grinding Mode tct circular Saw Blade Side Sharpener
FAQ
1. What products do we have?
Four categories saw blade sharpener:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpener with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpener: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade sharpener, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpener?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
