Handheld Pocket Size LCD Display Digital Multimeter with Ce RoHS

US$14.50 50 Pieces (MOQ)

Basic Info.

Model NO.

HT-118A

Theory

Electronic Meter

Power Source

AC and DC

Maximum Scale

1999

Range Conversion Type

AUTO RANGZ

Additional Measuring Item

Capacitance

Display

LCD

Power

2*AA Battery

Temperature

-40 to 1000 Celsius

Weight

Approx.350g

Safety Rating

En61010-1,-2-030,En61010-2-033,,En61326-1, Catiii

Duty

1%~99%

Counters

6000 Counters

Transport Package

Carton

Specification

188mm*88mm*58mm

Trademark

HOTOTECH

Origin

Dongguan/China

HS Code

9030320000

Production Capacity

5000 Set a Month

Product Description

6000 Counts Digital Multimeter WIth T-RMS/Autorange
product feature
-resistance measure up to 60mΩ with continuity detection
-large dual backlight diaplay with 6000 counts
-voltege measurement
-up to 10MHz frequency detection
-Auto power off
-low battery indication
-double color backlight
-the data hold

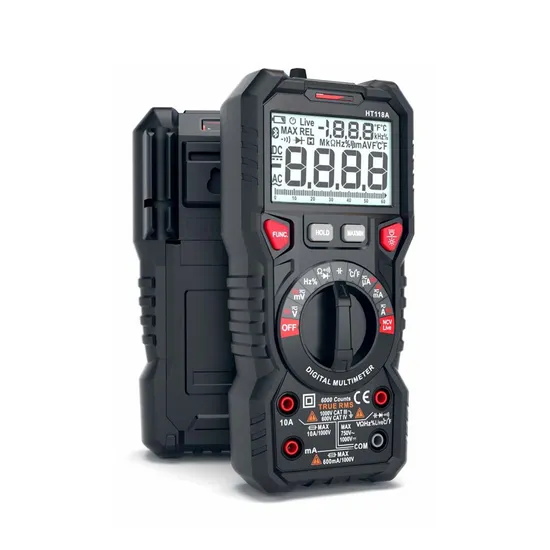

product image
the display
specifications

Specifications	Range	Accuracy
		HT118A
DC Voltage	600mV	±(0.5%+3)
	6V/60V/600V/1000V	±(0.5%+3)
AC Voltage	600mV	±(1.0%+5)
	6V/60V/600V/750V	±(1.0%+5)
DC Current	600uA/6000uA/60mA/600mA	±(0.8%+3)
	6A/10A	±(1.2%+3)
AC Current	600uA/6000uA/60mA/600mA	±(1.0%+3)
	6A/10A	±(1.5%+3)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(4.0%+3)
	100mF	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(1.0%+3)
Duty	1%~99%	±(1.0%+2)
Temperature(ºC/ºF)	-40ºC~1000ºC	±(1.0%+3)
	-40ºF~1832ºF	±(1.0%+3)
Counts		6000 Counts
Auto/Manual range		Auto
Display		LCD dual display

General
Power supply:2xAA batteries
Product size:188mm*88mm*58mm
Product weight:Approx.350g
Safety rating:EN61010-1,-2-030
EN61010-2-033
EN61326-1
CATIII 1000V
CATlV 600V
Company Profile
Introduction
visit customers
certificate
product package
FQA
-Do we support OEM or ODM?
-Will the original R&D manufacturing plant have a price advantage?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?
every answer is "YES"!
