Product Description
Product Description
About our company
Hebei Lanying Technology Co., Ltd. since its establishment, we have been committed to the production and research and development of wire mesh weaving machines for more than 20 years. Our SG100, SG130, SG160, SG180 series of wire mesh weaving machines cover the weaving from light to heavy fabrics. Can weave stainless steel wire, copper wire, nickel wire, aluminum wire, platinum, silver, alloy, polyester and so on. The CNC system based on PLC control, the weft insertion system controlled by AC servo motor, the calculation method of tension control, and the CNC let-off and winding mechanism have improved the quality of weaving. Our CNC wire mesh weaving machines are not only widely used in China, but also exported to foreign countries, such as Japan, South Korea, India, Vietnam, Europe and other countries and regions. V:19133101113
Our features
Wide compiling range, high precision, low noise, diverse colors, easy maintenance
Technology specification
Model no.: SG100
Wire diameter: 0.012-0.3mm
Nominal weaving width: 1300mm,1600mm,2000mm, (arbitrarily adjust width, special width on request)
Weaving density: plain weave square hole 40-600mesh/inch; twilled weave up to 600mesh/inch
Speed: 80-120RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.
Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.
Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.
Beat-up form: single
Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)
Wire material: stainless steel, iron, bronze, copper, phosphate bronze, nickle,aluminum, platinum,silver, polyester, plastic, etc , and non-ferrous wires.
Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.
Basic tension: 15000N/M
Size(L*W*H)mm: 2750X(3300-4000)X1500
Weight: 4200-4600KG
Model no.: SG130
Wire diameter: 0.06-0.45mm
Nominal weaving width: 1300mm,1600mm,2000mm,2500mm (arbitrarily adjust width, special width on request)
Weaving density: plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch
Speed: 80-120RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.
Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.
Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.
Beat-up form: single
Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)
Wire material: stainless steel, iron, bronze, copper, phosphate bronze, nickle,aluminum, platinum,silver, polyester, plastic, etc , and non-ferrous wires.
Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.
Basic tension: 20000N/M
Size(L*W*H)mm: 2750X(3300-4500)X1500
Weight: 4500-6500KG
Model no.: SG160
Wire diameter: 0.1-0.7mm
Nominal weaving width: 1300mm,1600mm,2000mm,2500mm 3000mm(arbitrarily adjust width, special width on request)
Weaving density: plain weave square hole10-100mesh/inch; twilled weave up to 350mesh/inch
Speed: 50-70RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.
Shedding forms: cam lead arch heald frames, servo dobby.cam lead tappet hanging frames.
Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.
Beat-up form: single and double beat-up type
Wire material: stainless steel, iron, bronze, copper, phosphate bronze, nickle,aluminum, platinum,silver, polyester, plastic, etc , and non-ferrous wires.
Basic tension: 40000N/M
Size(L*W*H)mm: 2800X(3300-4800)X2150
Weight: 6300-12000KG
Products picture
>>
Bending Plate Chain Farms, Printing Shops Transmission Chains
>>

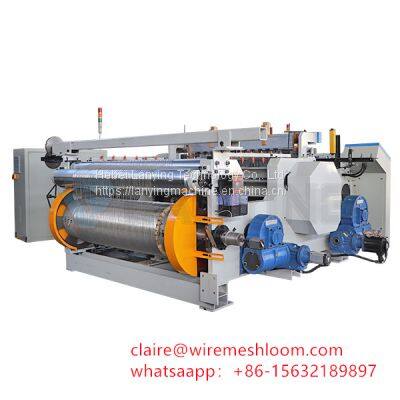

CNC wire mesh loom metal wire mesh weaving machine
>>
