| US$55,687.00 | 1 Piece (MOQ) |

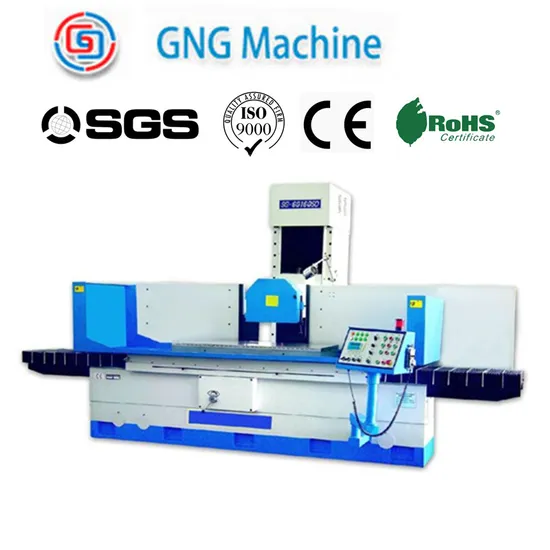

| SG SGA plc cnc column moving surface grinder | |||
| Item/Model | Unit | SG80220SD | |
| SG80220CNC | |||
| table size(WxL) | mm | 810X2200 | |
| max. grinding(WxL) | mm | 810X2200 | |
| max. distance between spindle center line and worktable surface | mm | 820/1050(925) | |
| magnetic chuck size (optional equipment) | mm | 800x1000x2 | |
| speed of table longitudinal movement | m/min | 5-25 | |
| wheel head cross moving | auto feed | mm/t | 1-30 |
| rapid speed | m/min | 0.05-2 | |
| hand wheel feed | mm/div | 0.005 | |
| wheel head vertical moving | auto feed | mm/t | 0.005-0.05 |
| rapid speed | mm/min | 0.05-2 | |
| feed of handwheel | mm/div | 0.005 | |
| wheel | speed | rpm | 960(1450) |
| size(ODxWxID) | mm | 500x75x305(450x75x203) | |
| motor of spindle | kw | 18.5 | |
| max. loading capacity of worktable with chuck | kg | 2240 | |
| total rated power | kw | 28.5 | |
| height of machine | mm | 2720/2920 | |
| floor space(LxW) | mm | 6000x3500 | |
| gross weight | kg | 12000 | |
