Good Quality Automatic Toilet Paper Rolling Packaging Machine

Product Description

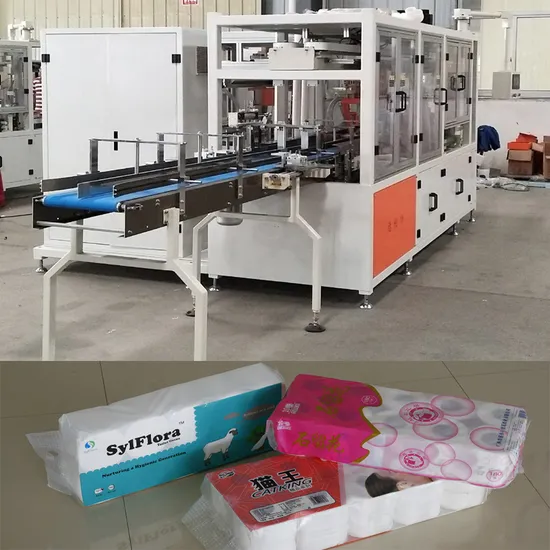

Guangdong Foshan Xiehecheng Automatic Toilet Tissue Roll Bundling Packing Machine
Technical Parameters for Automatic Toilet Tissue Roll Packing Machine

Automatic Toilet Tissue Roll Packing Machine
Machine size(mm)	5037*4090W*2000H	Air pressure(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(100-350)L*Φ(79-125)W*(1,2,2*2)	Voltage(can be ordered)	380V 50Hz(3-phase)
Speed(bags/min)	200	Machine weight(kg)	about 7600
Power(kw)	12	Packing material	CPP PE and so on

Main Features
1: Adopts flexible clip to help to keep the perfect shape of the productions. It's suitable to produce different sizes productions and easy to change.
2: Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
3: Adopts multiple servo system driving and control the machine, improve the productive.
4: Adopts high precise photoelectric tracing system, error auto-tracing and alarm system
more complete and easy to found and solved it.
5: The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
6: With Automatic oil-filling lubricating system, the use life of the machine have been extended greatly.
7: With adopting static electricity removing device, the packing effect is more perfectible.
8: With the intelligent tem-controller, the temperature adjustment is flexible.
9: Adopts the advance output cooling system, avoid multiple finished product adhere together.
10: Automatically print production date and the location can be adjusted from up to down, from left to right.
Oure Certificate
Our Factory
Loading & Shipping Why Choose Us 1. We are specialized in manufacturing Automatic tissue machine for 10 years. 2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want. 3. Our company located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us. 4. 100% QC inspection and debugging before shippment. 5. 100% rest assured after-sales service. Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1.We provide door to door installation, equipment debugging technical training service and so on.
2. Warranty: 1 year quality assurance.
3. Our after-sale team have a rest assured global presence service even over the warranty period for you.

---
