Ut81b Real-Time Sample Rate LCD Scope Dmm Digital Multimeter

Product Description

UT81b Real-Time Sample Rate LCD Scope DMM Digital Multimeter

I. Product Description of UT81 Digital AC DC Volt Amp Ohm Capacitance Multimeter
1. Portable, compact and lightweight.
2. 3 3/4 digit digital multimeter auto ranging pocket.
3. Functional and stable performance.
4. High precision, low power consumption.
5. The new structure, safe and reliable.
6. Simple, easy to use, rugged and durable.
II. Parameter of UT81 Digital AC DC Volt Amp Ohm Capacitance Multimeter

Specifications	Range	Best Accuracy
Model		UT81A	UT81B	UT81C
DMM Specifications
DC Voltage (V)	400mV/4V/40V/400V/1000V	±(0.8%+8)	±(0.8%+8)	±(0.8%+8)
AC Voltage (V)	4V/40V/400V/750V	±(1%+15)	±(1%+15)	±(1%+15)
DC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1%+8)	±(1%+8)	±(1%+8)
AC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1.5%+8)	±(1.5%+8)	±(1.5%+8)
Resistance (Ω)	400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ	±(1%+5)	±(1%+5)	±(1%+5)
Capacitance (F)	40nF/400nF/4μF/40μF/100μF	±(3%+8)	±(3%+8)	±(3%+8)
Frequency (Hz)	10Hz-10MHz	±(0.1%+3)	±(0.1%+3)	±(0.1%+3)
Scope Specification	Range	Best Accuracy
Bandwidth		2MHz	8MHz	16MHz
Real-Time Sample Rate	Constant sampling rate (peak sampling)	20MS/s	40MS/s	80MS/s
Vertical Accuracy		±(5%+1)	±(5%+1)	±(5%+1)
Input Sensitivity	20mV/div - 500V/div(1-2-5)	√	√	√
Horizontal Accuracy		±(0.1%+1)	±(0.1%+1)	±(0.1%+1)
Time-Base Range	100ns/div - 5s/div(1-2-5)	√	√	√

General Characteristic
Power	1.5V Batteries(R6)X 4
LCD Size	60mm X 60 mm
Product Color	Red and Grey
Product Net Weight	498g
Product Size	200mm X 100mm X 48 mm
Standard Accessories	Batteries, Test Lead,AlligatorClip,USB Interface Cable,PC Software CD, BNC Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	20 PCs
Standard Carton Measurement	490mm X 385mm X 510mm (0.096 CBM Per Standard Carton)
Standard Carton Gross Weight	24 Kg
Optional Accessories	Scope Probe,AC Power Adaptor

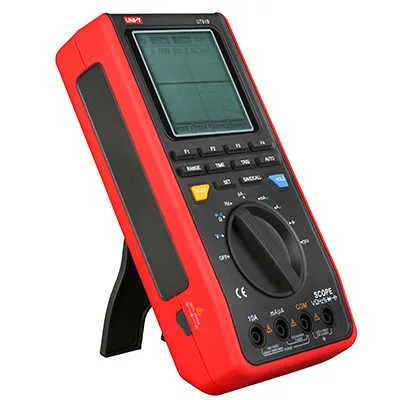

III. Detailed Photos
