FULL IP65 HIGH BRIGHTNESS TOUCH MONITOR: A RUGGED INDUSTRIAL SOLUTION FOR CHALLENGING ENVIRONMENTS
INTRODUCTION
Welcome to our comprehensive guide on the Full IP65 High Brightness Touch Monitor. As a leading provider of cutting-edge industrial solutions, we understand the importance of having reliable and durable equipment in demanding environments. If you are interested in our TOUCH MONITOR, feel free to CONTACT US!
UNVEILING THE FULL IP65 HIGH BRIGHTNESS TOUCH MONITOR

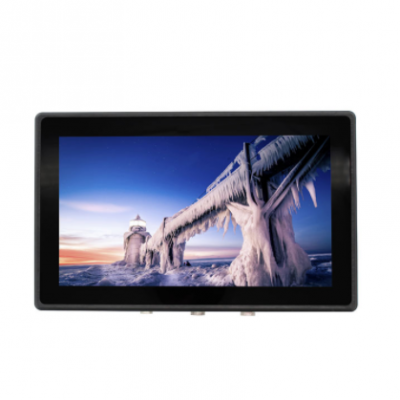

Our Full IP65 High Brightness Touch Monitor, the rugged SL200W, is a state-of-the-art display solution engineered to thrive in challenging industrial settings. With its exceptional performance and advanced features, it ensures optimal functionality and durability, surpassing industry standards. Let's explore its key attributes in detail.
FEATURES
1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. Industrial LCD panel, 1000 nits. sunlight readable.
3. Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.
4. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
5. High performance mainboard, 7x24 continuous operation.
SPECIFICATION
Model:SL200W
|
LCD panel
|
Panel size
| 7" - 32"
|
Resolution
| 1024*768, 1280*800, 1280*1024, 1366*768, 1920*1080
|
Aspect ratio
| 4:3, 5:4, 16:9, 16:10
|
Support Color
| 16.7M colors
|
Brightness (cd/m²)
| 1000 nits, sunlight readable
|
Contrast ratio
| 1000:1
|
View angle
| 85°/85°/85°/85° (R/L/U/D)
|
Touch panel
|
Touchscreen Type
| Project Capacitive Touch (10 points )
|
Surface Hardness
| 7H
|
Luminousness
| 90%
|
Touch Interface
| USB (RS232 optional)
|
Touch response time
| 2ms
|
Working Life
| >50 million times
|
Touch options
| (5 wires restive touch optional)
|
Singal Ports
|
HDMI
| 1xHDMI
|
DVI
| optional
|
VGA
| optional
|
Audio in/out
| optional
|
OSD
|
OSD control
| Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
|
Support languages
| English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
|
Support OS
| Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
|
Power Supply
|
External Power Supply
| AC 100-240V
|
Working voltage
| DC 12V
|
Power consumption
| ≤30W
|
Enclosure
|
Material
| aluminium alloy front bezel + High strength cold rolled steel back case
|
Color
| Black, white, Silver, color can be customized
|
VESA mounting
| 100x100 mm
|
IP-grade
| Full IP67 waterproof
|
Operating Environment
|
Temperature Range
| operating: -20 to 70°C, storage: -30 to 80°C
|
Relative humidity
| operating: 10% to 90%, storage: 5% to 90%
|
Accessories
| Power adapter, Waterproof Power cord, Waterproof HDMI/USB cable, Wall mount
|
Other
|
Mounting (options)
| 1) wall brackets for wall-mounting, VESA 100×100 mm
|
2) stable metal holder to support the monitor
|
Warranty
| 1 year warranty
|
Available Sizes
Size
| Resolution
| Aspect ratio
| Touch type
|
10.1"
| 1280*800
| 16:10
| capacitive/resistance
|
12.1"
| 1024*768
| 4:3
| capacitive/resistance
|
15"
| 1024*768
| 4:3
| capacitive/resistance
|
15.6"
| 1920*1080
| 16:9
| capacitive/resistance
|
17"
| 1280*1024
| 5:4
| capacitive/resistance
|
19"
| 1280*1024
| 5:4
| capacitive/resistance
|
21.5"
| 1920*1080
| 16:9
| capacitive/resistance
|
22"
| 1920*1080
| 16:9
| capacitive/resistance
|
24"
| 1920*1080
| 16:9
| capacitive/resistance
|
27"
| 1920*1080
| 16:9
| capacitive/resistance
|
IP67 WATERPROOF DESIGN
The rugged industrial monitor boasts an impressive IP67 rating, providing complete protection against dust ingress and the ability to withstand immersion in water up to a depth of 1 meter for 30 minutes. This robust waterproof design ensures uninterrupted operation even in wet or dusty environments, making it an ideal choice for industries such as manufacturing, mining, marine, and outdoor applications.
High Brightness Display
Equipped with a high brightness LCD panel, the SL200W offers excellent visibility even in bright sunlight or high ambient light conditions. The display's brightness can reach up to 1000 nits, guaranteeing crystal-clear visuals and minimizing glare, which is particularly crucial for outdoor installations, transportation systems, and any environment with challenging lighting conditions.
Capacitive Touch Technology
The touch functionality of the SL200W is powered by advanced capacitive touch technology, enabling precise and responsive interaction. With multi-touch support, users can effortlessly navigate through applications, zoom in and out, or perform complex gestures, enhancing overall productivity and user experience. The touch screen is also built to withstand harsh usage, ensuring durability in demanding operational scenarios.
Wide Operating Temperature Range
Designed to withstand extreme temperatures, the rugged industrial monitor operates flawlessly in a wide range of environments. It can endure temperatures as low as -20°C (-4°F) and as high as 60°C (140°F), making it suitable for industrial applications in freezing cold or scorching hot conditions. Its ability to function reliably in such extreme temperatures ensures uninterrupted performance in diverse operational settings.
Robust Construction
Crafted with durability in mind, the SL200W features a rugged construction that can withstand vibrations, shocks, and accidental impacts. It is built using high-quality materials and adheres to stringent industry standards, making it resistant to damage from daily wear and tear. This rugged design ensures longevity and reduces maintenance costs, making it an excellent investment for businesses seeking reliable industrial-grade displays.
APPLICATIONS AND INDUSTRY ADVANTAGES
The rugged industrial monitor finds extensive application across various industries, providing numerous advantages in demanding environments. Here are some key sectors where the SL200W excels:
1. Manufacturing and Automation
In manufacturing facilities, the SL200W enhances process control and efficiency. Its high brightness display allows operators to view critical data and instructions clearly, reducing errors and increasing productivity. The rugged construction ensures reliable performance, even in the presence of dust, moisture, or vibrations commonly found on the shop floor.
2. Mining and Heavy Industries
The SL200W is an ideal choice for mining and heavy industries due to its robustness and ability to withstand harsh conditions. Its waterproof design and durability make it well-suited for use in underground mining operations, where exposure to water, dust, and mechanical stress is prevalent. The high brightness display ensures visibility in all lighting conditions, improving safety and operational effectiveness.
3. Marine and Offshore Applications
The Full IP65 High Brightness Touch Monitor is designed to excel in marine and offshore environments. Its waterproof construction and resistance to corrosion make it a reliable solution for ships, offshore drilling rigs, and marine navigation systems. The high brightness display enables easy readability in bright sunlight or adverse weather conditions, contributing to enhanced situational awareness and seamless operation.
4. Outdoor Information Systems
With its exceptional visibility, durability, and waterproof design, the SL200W is an excellent choice for outdoor information systems. It can be deployed in public transportation systems, stadiums, outdoor kiosks, and other applications where exposure to the elements is a concern. The display's high brightness ensures clear information dissemination, even under direct sunlight, enhancing user experience and communication effectiveness.
>>
