Welcome to visit

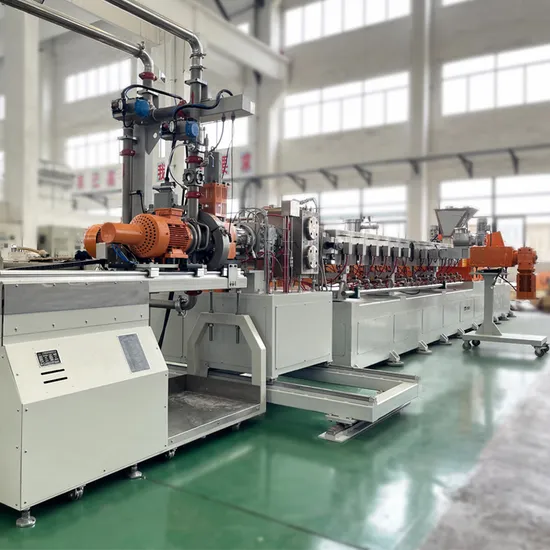

Twin Screw Extruders TPE Thermoplastic Elastomers Extrusion Line

US$25,000.00
1 Set
US$24,000.00
2+ Sets

Basic Info.

Model NO.
PSHJ & SHJ
Type
Granulation
Plastic Processed
Polyester
Product Type
Granulating Extruder
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Capacity
500-800kg/H
Applications
All Kinds of Polymer Mixing
Electric Brands
Siemens
Control
PLC + Touch Screen
Extruder Weight
800kg
Transport Package
Pallet and Wooden Box
Specification
other
Trademark
XINDA
Origin
China
HS Code
84772010
Production Capacity
200sets/Year

Packaging & Delivery

Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg

Product Description


Jiangsu Xinda has 30 years of experience plastic machinery twin screw extruder for making plastic granules
Product Description
Advantage
The clamshell design makes screw changes and cleanout quick and easy, adding to its versatility
Parameter Model PSHJ-20 PSHJ-35 PSHJ-50 PSHJ-65 PSHJ-75 PSHJ-95 PSHJ-127 PSHJ-135
Twin Screw
Diameter:mm		 21.7 35.6 50.5 62.4 71 92 126 132
Screw Central
Distance:mm		 18 30 42 52 60 78 102 110
Twin Screw
Length:L/D		 28-52 28-52 28-52 28-52 28-52 28-52 13-18 13-18
Main Extruderr
Motor Power:kW		 4-5.5 18.5-30 55-110 75-200 95-250 250-450 160-200 200-280
Twin Screw
Speed Max.:rpm		 600 600/800 600/800 600/800 600/800 600/800 300 300
Reference Output
kg/hour		 5-10 30-120 100-300 250-450 350-700 800-2000 1000-2000 1500-3000

Application
Detailed Photos

Company Profile
Products Recommended
Twin Screw Extruder
Reciprocating Kneader
Lab Extruder
Underwater Pelletizing System & Hot Melt Extruder for Pharmateucial
Spare Parts
