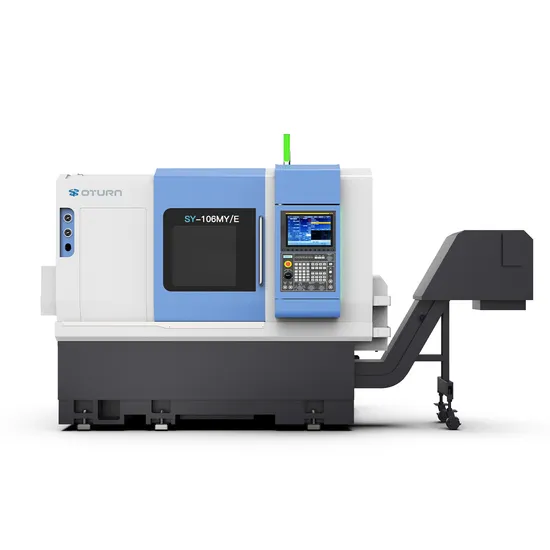

Heavy Cutting Slant Bed CNC Turning Center Machine Esy106my CNC Lathe

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. The high-strength roller linear rail design structure, the transmission system adopts screw pre-tension design to improve the rigidity performance, and the simple and elegant appearance is in line with the trend of the trend.
Main features of this machine tool:
1. Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. High rigidity integrated design servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor.
3. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can make the heat The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable.
5. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Name	Unit	ESY106MY/E
Max. swing diameter over bed	mm	Φ660
Max. processing diameter	mm	330
Max. processing diameter on the tool holder	mm	Φ350
Max. processing length	mm	220
Distance between centers	mm	510
Spindle nose	type	A2-5
Max. spindle speed	rpm	6000
Oil cylinde/Chuck	lnch	6″
Spindle bore diameter	mm	Φ56
Bar diameter	mm	Φ45
Direct drive spindle motor power	kw	17.5KW
Max. X axis travel	mm	180
X/Z axis linear guidel specification	spes	35/35 roller
Max. Z axis travel	mm	420
X/Z/Y axis motor power	mm	1.8/1.8/1.0 KW
X/Z axis fast move	m/min	24/24
X/Z positioning accuracy	mm	±0.005
X/Z repeatability	mm	±0.003
Opposite side of cutter/Power turret type	mm/pcs	330/BMT45-12T
Servo power turret motor	KW	3.7/5.5kw
Square tool holder specification	mm	25X25
Round boring tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Servo power turret positioning accuracy	/	±2"
Servo power turret repeat positioning accuracy	/	±1"
Programmable hydraulic tailstock	/	Programmable
Max. travel of tailstock	mm	360
Tailstock sleeve taper hole	type	Mohs 5#
Tailstock sleeve diameter	mm	/
Sleeve travel	mm	/
Machine size(L*W*H)	mm	2500x1800x1700
Machine weight	kg	3800
Cutting fluid tank volume	L	89L
Cutting water pump	kw	0.75kw
