Plywood Machine Ultra Fully Automatic Veneer Peeling Machine

Product Description

Product Details

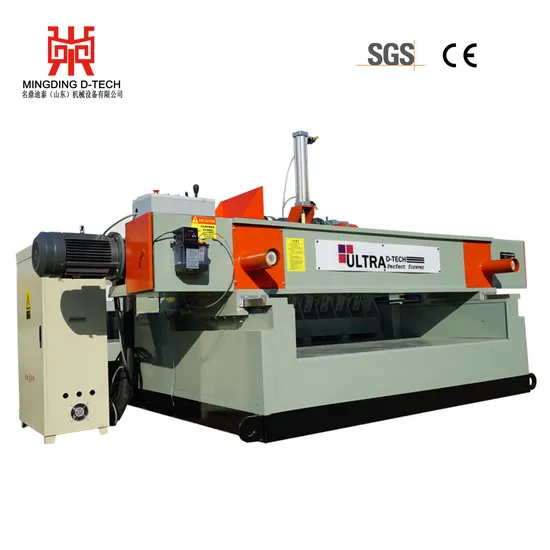

MingDing Ultra Spindle less Veneer Peeling Machine
veneer peeling machine is the main equipment for producing plywood.
It is used to process wood logs of a certain length and diameter into continuous veneer strips,
which are then cut to form a certain specification of veneer.
The performance and operation of veneer peeling machines are closely related to the yield and quality of plywood.
Features:
1.Double roller driving model.
2.totally closed oiled immersed.
3.quenching guide rail makes long using lifetime.
4.Automatic Servo Motors.
5.High speed and adjustable speed from 40- 150meter/minute.
6.Both side of core veneer will be smooth.
7.High thickness of steel frame makes the weight heavy.
8.Voltage can adjust according to different countries situation.

Parameters

4ft automatically veneer peeling machine(size can customize accroding to need)
Peeling length	1500mm
Peeling width	660mm-1600mm
Rated voltage	415V/50HZ(Adjustable)
Maximum diameter	500mm
Minimum left diameter	24mm
Thickness	0.3-6.0mm
Speed	100-150 meter/min
Single roller motor power	7.5kw*2 set
Double roller motor power	7.5kw*2 set
Feeding motor power	11kw
Clipping	4kw
Total power	46.5kw
Single and double roller diameter	125mm
Size of knife	1600*180*16mm
Overall size	4400*2800*1500mm
Total weight	7200kg

Double Roller Feeding Systerm--unique skills,more professional and cost-effective

Other Technology Advantages

Quenching guide rail
1.CNC cutting.
2.Quenching increases the hardness and service life.
3.Avoid the wear and tear of the common screw,guaranteen machine operation deviation,veneer width and thickness.
Total closed oil immersion guide screw
1.adding lubrication oil once a year,greatly save lubricating oil and working time.
2.dust and veneerchips will not enter the lead screw.
then will not cause machine precision reduction.

Automatically adjust height and gap of knife
Change the thickness of the veneer, automatically adjust the height and gap of the knife together. We use servo motor and inverter to make the adjustment more accurate.
Electrical Control Cabinet
neat and orderly electrical control cabinet,use chinese domestic famous brand electric components or world famous brand(customized accroding to customers need)
Real and Thicker Raw Material
Adequate and thick materials are used to make the mechanical body heavier and more stable, ensuring stable output even during high-speed operation of the equipment

Factory Producing Details

Customer Visiting

Company Certificates

Packaging and Delivery

---
