Mobile Tree Shredder Diesel Pallet Crusher Industrial Log Grinder Wood Drum Chipper

Product Description

Product Description
1. Designed for round logs, square blocks, wood staff.
2. Including Main Body,Knife Rotor,In and out feeding System,Hydraulic System,Electric Control System
3. Widely used in the factories of flake board, fiberboard, paper making.
4. Chipping big wood logs, wood planks for biomass pellet production.

Product Parameters
Wood Chipper Branch Shredder Crusher Grinder
Popular and highly trusted in Australia,Chile,Fiji,Guatemala,Indonesia,Italy,Malaysia,
Mauritius,Philippine,Russia,South Africa,Sigapore,Thailand,UAE,UK,USA,Vietnam,Zambia,

Model	WS216	WS218
Blade Roll Diameter	650MM	800MM
Roller Speed	650RPM	650RPM
Knife Quantity	2PCS	2PCS
Feeding Inlet	240*540MM	400*700MM
Production Capacity	3-5 Tons/Hour	6-8 Tons/Hour
Motor Power	55KW	90KW
Feeding Motor	3KW*1 , 4KW*1	4KW*1,5.5KW*1
Outlet Motor Power	3KW-6 *2	3KW-6*2
Oil Pump Motor Power	1.5KW	1.5KW
Feeding Conveyor	6 Meters	6 Meters
Outlet Conveyor	10 Meters	10 Meters

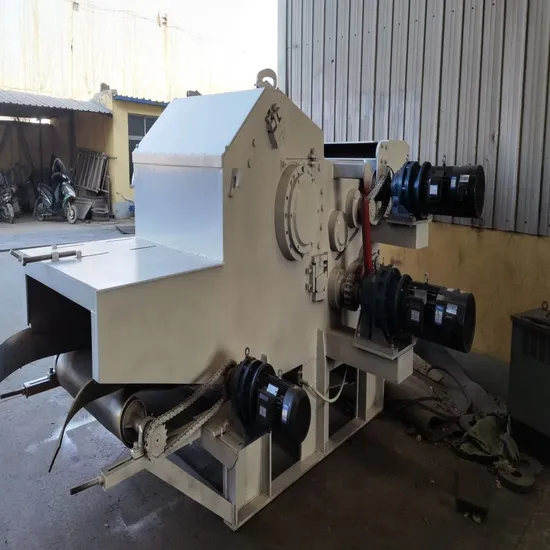

Detailed Photos
Raw Materials
Related Machines
Wood Disk Chipper

Model	WS300	WS450	WS500
Feeding Inlet MM	300*300	450*450	500*500
Blade Roller Diameter MM	1200	1600	1800
Blade Quantity	6	6	6
Motor Power KW	90	185	220
In Feed Conveyor Meters	8	8	8
Out Feed Conveyor Meters	10	10	10
Wood Chips Size MM	20-35	20-35	20-35
Capacity Tons/Hour	15	20	25
Weight KGS	3300	6500	9600

Wood Branch Crusher

80HP 60KW Diesel Engine Brand	HUA DONG / WEI CHAI
Double Side Blade Quantity	4 Moving +1 Fixed
Cutting Branch Size	5-200MM
Blade Shaft Diameter	540MM
Forced Feeding Control	Intelligent
Capacity	3-5T/H
Feeding Inlet Length	1845MM
Feeding Inlet	470*440MM/1320*690MM
Hydraulic Oil Tank	600*260*430MM
Electric Start	24V Battery
Tyre	600-1617
Walking	PTO
Power Input	Reverse Charging Mode Of Power Operation
Overall Size	4600*1800*2900MM
Weight(kg)	3000

Horizontal Wood Splitter

Model	WS1200	WS1500
Motor Power	15	18.5
Stroke	1200	1500
Forward Speed	80MM/S	80MM/S
Backward Speed	120MM/S	120MM/S
Max Thrust 16MPA	30T	50T
Weight	2200KG	3000KG

Double Rotor Log Debarker

Model	WS6000	WS9000
Production Capacity	5-10T/H	10-15T/H
Motor Power	11KW*2	15KW*2
Log Diameter	50-250MM	50-250MM
Log Length	6000MM	9000MM

Hammer Mill

Model	WS700	WS1100	WS1500
Feeding Inlet	1000*600mm	1000*700mm	1000*800mm
Blade Shaft Diameter	700mm	1100mm	1500mm
Blade Quantity	84	84	84
Blade Roll Speed	2800R/M	1450R/M	1450R/M
Motor Power	132KW	160KW	220KW
In Feeding conveyor	10000mm	10000mm	10000mm
Out Feeding conveyor	6000mm	6000mm	6000mm
Max Processing wood size	20-50mm	20-50mm	20-50mm
Capacity	3-4T/H	5-6T/H	8-10T/H
Double Auger Discharge,Integrated Electric Control Box,Soft Starter,

Wood Grinder
Drum Chipper/Shredder/Crusher.Industrial chipping/shredding/crushing Machine
For Building Template,Wasted wood pallet,tree bark,slabs,offcuts,branches,straw....

Feeding Inlet(mm)	1400*600
Blade Roll Diameter(mm)	830MM
Blade Quantity	4PCS=2 Group Fly Knife
Blade Roll Speed (R/Min)	850
Max Processing Wood Diameter	450MM
Wood Chipper Size	20-40MM
Production Capacity	15-20 Tons/Hour
National Standard Copper Motor Power	200 KW
Feeding Suspension Inverter Motor	7.5KW*1
1400*6000MM 16Mn Chain Plate Feeding Inverter Motor	11KW*1
Electromagnetic valve integrated Oil Pump Motor	3KW
Outlet 4 Layer Nylon Conveyor	3 KW Gear Motor
10*1*3.8-4.5Meters Outlet 4 Layer Nylon Conveyor	7.5 KW Gear Motor

Wood Stump Shredder

Blade Quantity	4 Fly Knife Or 26 Hammer
Feeding Inlet Diameter	3600MM
Blade Shaft Size	1600*850MM
Rotor Diameter	800MM
Production Capacity	25-30 TONS/Hour
Motor Power	185KW
Outlet Conveyor	12 *1.2Meters

Packaging & Shipping


Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our machine including:
Wood Splitter,
Wood Debarker,
Wood Chipper (Drum/Disk)
Branch Shredder,
Root Crusher,
Pallet Grinder
Hammer Mill,
Rotary Dryer,
Wood Pellet Machine
Wood Shaving Machine,
Hydraulic Baler
Wood Wool Machine,
Rope Machine
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
