High Moisture Tolerance Briquette Press

Product Details

Product Description

Product Description

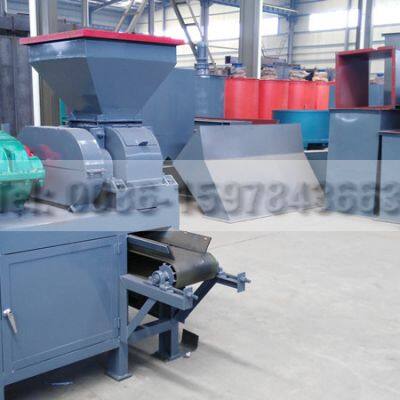

High Moisture Tolerance Briquette Press
High Moisture Tolerance Briquette Press Introduction:
(1) High Moisture Tolerance Briquette Press is a transformation of a powdery or granular material into a more convenient size.
(2) Mix into suitable binder additive according to different raw material features.
(3) The machine produce briquettes in square, ball type, round and oval type, pillow type and other special shape. User also can define their own specific shape.
(4) Briquettes' size is maintained between 25-60mm. The compressive strength of briquettes is in 75-90kg.
High Moisture Tolerance Briquette Press Features:
(1) The particle size of the raw material should be between 0-5mm.
(2) Can not contain impurities, especially large metal. Such as nails, or iron, rocks, it very likely damage roller and spindle..
(3) The feeding of whole production line should be stable, even, ensure workloads of briquette machine stable, to get high efficiency of production.
(4)The roller materials adopt forging steel, high precision and abrasion resistant, the rigidity reach 59-62HR after prempring, the working life reaches 12 month.

Model	Reducer	Ratio	Roller Size(mm)	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
XM290	ZQ350	1:31.5	290*200	12-14	5.5	0.9-1.0	Constant Pressure
XM360	ZQ350	1:31.5	360*250	12-14	7.5	1.5-2.0	Constant Pressure/Hydraulic Pressure
XM400	ZQ400	1:31.5	400*250	12-14	7.5	2.5-3.5
XM430	ZQ400	1:31.5	430*250	12-14	11	3.5-4.5
XM500	ZQ650	40.17	500*470	10-12	37	7.5-8.5
XM650	ZQ850	40.17	650*470	9-11	45	9-10
XM750	ZQ1000	40.17	750*570	9-11	90	13-14
XM850	ZQ1250	50	850*570	8-10	110	15-17
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo
According to different material adjust machine parameter to meet customer production

KF Series Mineral Powder Briquetting Machine

Model	Reducer	Ratio	Roller Size	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
KF500-371-280	ZQ500	40.17	370*280	8-10	11	6.5-7.5	Constant Pressure/Hydraulic Pressure
KF650-500-300	ZQ650	40.17	500*300	8-10	37	8.5-9.5
KF850-650-300	ZQ850	40.17	650*300	8-10	55	10.5-11.5
KF1250-750-350	ZS1250	50	750*350	7-9	110	13.5-14.0
KF1450-850-350	ZS1450	50	850*350	7-9	132	15.0-16.0
KF560-1000-350	ZSY560	50	1000*350	7-9	150	17.0-20.0
Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo.
According to different material adjust machine parameter to mmet customer production

YHG Series Dry Powder High Pressure Briquetting Machine

Model	YHG-0.5	YHG-1.5	YHG-3.0	YHG-5.0	YHG-8.0	YHG-10.0
Roller Diameter(mm)	φ299	φ367	φ522	φ738	φ760	φ858
Roller Width(mm)	180	183	196	210	225	300
Capacity(t/h)	0.5	1.2-1.4	2.5-3.0	4.5-5.5	7.5-8.5	8.0-9.5
Main Reducer	ZQ650	ZQ850	ZS1250	ZS1450	ZS1650	ZS1650
Main Motor	18.5	37	55	75	90-110	110-132
Pre-pressure Motor(kw)	7.5	11	15	18.5	18.5	22
Pre-pressure Reducer	WHC-125	WHC-160	WHC-200	WHC-210	WHC-210	WHC-250
Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm
Roller material adopts 9Cr2Mo
Pre-pressure motor is speed motor

Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
