Product Details
Product Description
Product Description
Application:

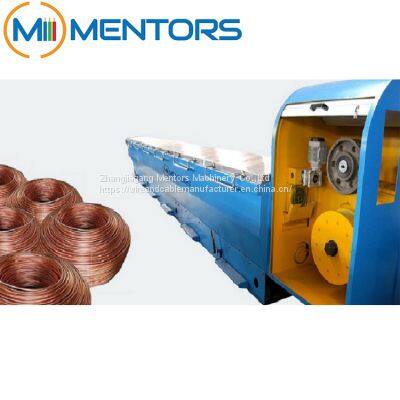

The machine is used for drawing copper rod from 8.0mm to 1.2-4.0mm.
Outlet wire can go to dual take up device or coiler.
Feature:
1)Ironed cast
2)Rapid die change system
3)Capstan Diamter: 450mm
4)Max.Dies Quantity: 13
5) Speed Range: 20-25m/s
Main Specification:
Machine Type
| SY-LHD450/13
|
Max.Die No
| 13
|
Inlet wire dia
| Φ8mm
|
Outlet wire dia
| Φ1.20-Φ3.5mm
|
Max.Speed
| 25m/s
|
Capstan dia
| 450mm
|
Main motor
| 280kw (DC)
|
Fix speed capstan motor
| 75kw(DC)
|
Take up motor
| 30/18.5kw
|
Annealing part (optional)
| Horizontal type
|
Max.annealing voltage
| 70V(DC)
|
Max.annealing current
| 6000A(DC)
|
Take-up type (optional)
| 1. Double bobbin take-up
2. Compact Coiler
3. Drop Coiler
|
Advantages:
1)Iron cast gear box body ensure long life with low noise
2)Horizontal structure, operate easily.
3 )Fast die change system keep high efficiency when produce different diameter.
And dies quantity decrease a lot at the same time.
4)The capstan is coated with tungsten carbide power can support long life
5)High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
6)PLC and touch screen controlled type, parameters can be set and display easily.
FAQ:
1) What's the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
>>
