Basic Info.
Model NO.
SYM5359THB 490C-10
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Product Name
49m Concrete Pump Truck
Concrete Pumping Pressure
8.3/12MPa
Outline Size
12380*2550*4000mm(L*W*H)
Transport Package
Comply with Export Packaging Requirements
Specification
12380*2550*4000mm
Trademark
Top Brand China
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
1238.00cm * 255.00cm * 400.00cm
Package Gross Weight
35000.000kg
Product Description
Product Description

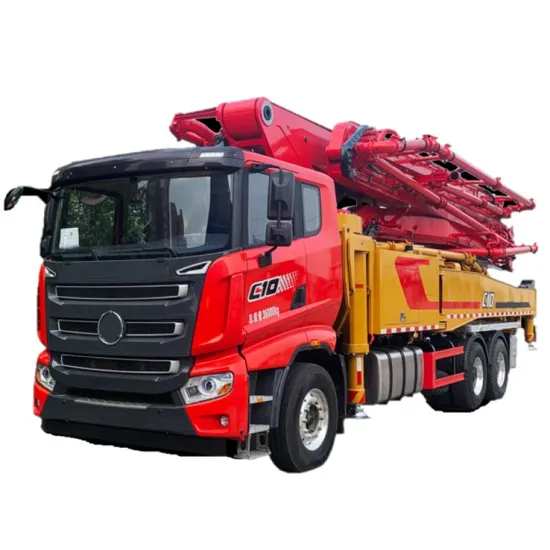

SYM5359THB 490C-10 pump truck has the advantages of powerful performance, stable working efficiency, high safety, flexible operation and durable design. It is an excellent pump truck product worthy of selection. Advantages and Features
Highly Reliable
· Optimized essential parts with ultra-high-strength steel· Open hydraulic system & high configuration· SNY customized chassis & SAY DEUZ Engine· Stable signal & precise control
Strong Pumping
· A 10% increase in pumping efficiency
· Smoother flow, less blockage, and meet long-time pumping need
· Dual-purpose machine: quickly transforms into a line pump
· Various boom types & flexible working posture
· Less site limitation, smaller footprint, more comprehensive placement range
Product Parameters
SYM5359THB 490C-10
|
full length
| 12380mm
|
Total width
| 2550mm
|
Total height
| 4000mm
|
Gross weight
| 35000kg
|
Boom outrigger parameters
|
|
Vertical height of boom
| 48.6m
|
Horizontal length of boom
| 43.6m
|
Vertical depth of boom
| 30.8m
|
Minimum expansion height
| 13.9m
|
Length of first section arm
| 9760mm
|
First section arm angle
| 89°
|
Length of the second section
| 7670mm
|
The second section of the arm angle
| 180°
|
Third section arm length
| 7410mm
|
Third section arm angle
| 180°
|
Fourth section arm length
| 9670mm
|
The fourth section of the arm angle
| 235°
|
The fifth section arm length
| 10060mm
|
The fifth section of the arm angle
| 215°
|
Turntable rotation angle
| ±360°
|
Width of front outrigger
| 9300mm
|
Width of rear outrigger
| 9620mm
|
Pumping system parameters
|
|
Theoretical displacement of concrete is low
| 170m³/h
|
Theoretical displacement of concrete at high pressure
| 120m³/h
|
Theoretical pumping pressure is low
| 8.3Mpa
|
Theoretical pumping pressure is high
| 12Mpa
|
Theoretical pumping times
| 29 times/minute
|
Theoretical pumping times
| 19 times/minute
|
Inner diameter of delivery cylinder
| 260mm
|
Conveying cylinder stroke
| 1900mm
|
Hydraulic system
| Open
|
System oil pressure
| 32Mpa
|
Fuel tank capacity
| 680L
|
Water tank volume
| 620L
|
Conveying pipe diameter
| 125mm
|
End hose length
| 3m
|
End hose diameter
| 125mm
|
Chassis parameters
|
|
Chassis model
| SYM5350THB1F
|
engine model
| D13C6-480E0
|
Maximum net engine power
| 348/1900kW/rpm
|
Emission Standards
| Country VI
|
Fuel tank volume
| 600L
|
Displacement
| 12940L
|
Maximum speed
| 90km/h
|
