Product Details
Product Description
Product Description

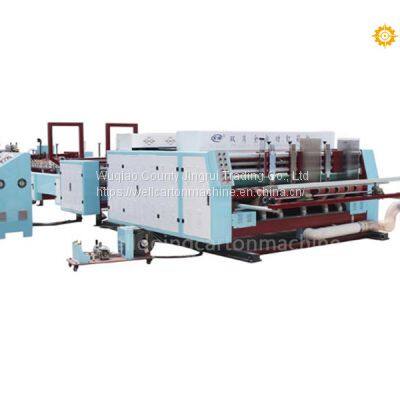

full automatic stitch machine
♦ The automatic stitching machine adoptsJapanese yaskawa, mitsubishi brand servo drive, precise and accurate,the mechanical transmission part is less, can effectively reduce the mechanica failure rate;
♦ the contactor in the control box adopts mitsubishi brand of Japan;
♦ the relay adopts the brand of schneider in France, the circuit breaker adopts the brand of mitsubishi in Japan, and the photoelectric and proximity switches adopt the brand of omron in Japan. Cylinder, solenoid valve for Taiwan vadec brand;
♦ the whole set of nail head are all made of special steel, CNC precision machining;
Automatic box nailing machinery
♦ bottomdie,the blade is made of Japanese tungsten steel (wear-resisting);
♦ can be tacked with cover box;
♦ the driving force of the nail head is yaskawa servo motor. mechanical speed: 700-800 nails per minute;
♦ four nail, 60 pieces per minute or so;
♦ this machine adopts nine servo drive motor system;
♦ one machine, can nail single nail carton, double nail carton;
♦ nailable reinforcing nailing, single nailing, double row nailing one time;
Model
| SBDJ-2500
|
Max. paper size (mm)
| 1250 (one-piece)
|
Min. paper size (mm)
| 650
|
Max. carton length (mm)
| 900
|
Min. carton length (mm)
| 360
|
Max. carton width (mm)
| 550
|
Min. carton width (mm)
| 200
|
Max. paper height (mm)
| 1000
|
Min. paper height (mm)
| 200
|
Max. rock cover (mm)
| 500
|
Min. rock cover (mm)
| 20
|
Max. high (mm)
| 700
|
Min. high (mm)
| 110
|
Max. width of the tongue (mm)
| 30-35
|
Nailing from (mm)
| 30-120(high speed)
|
Number of nails
| 2-99
|
Stitching Speed (nail/minute)
| 700-800
|
Weight (T)
| 12
|
♦ the stacking part automatically counts the output, the finished products are sent out for easy strapping;
♦ this machine adopts computer screen to display fault description;
♦ insulation transformer protection device for the whole machine;
♦ automatic wire feeding system, no wire alarm, 20 KG plate flat wire, save time;
♦ suitable for small and medium-sized cartons, fast and labor saving stitching;
♦ applicable to corrugated board three layers, five layers, seven layers (seven layers need special instructions).
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo printer slotter die cutter stacker machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine,automatic carton box folder gluer machine, semi-automatic carton floder gluer machine paper tube making machine, flexo ink printing wastewater treatment machine 3,5,7ply corrguated cardboard production line and so on.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
>>
