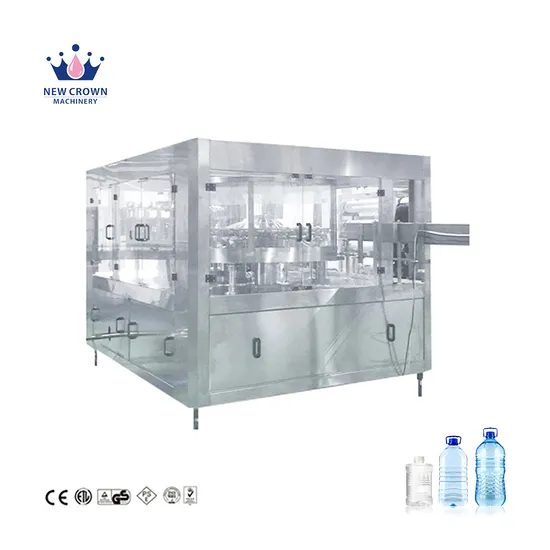

Hot Sale Custom Design Full Automatic 5L Pet Plastic Bottle Drink Water Filling Machine

Product Description

Description
Monoblock means the filling machine integrates washing machine, filling machine and capping machine in one frame. The driving system will be transmitted step by step which makes the speed more stable.

The Monoblock filling machine will be made basing on:
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another

Please send us the inquiry with above points so that we can help to send better quotation for reference.
Features:

Machine structure	washing, filling and capping part in one unit; one driving system makes the speed more stable need one person to operate the machine no noisy while running more compact different bottles can be applied in same machine (the bottle neck should be the same)
Washing part	the star wheel to hold the bottle neck to avoid damage the bottle mouth there is nylon grip to protect bottle mouth
Filling part	round liquid tank, no residual after filling the valves are stainless steel 304 no bottle no filling filling level can be adjusted
Capping part	there is anti-rotary blade to fix the bottle without moving the capping torque can be adjusted apply cap sterilizing tunnel by cleaning agent
Control system	PLC control Touch screen Individual electric cabinet
Electric part	All the electric parts are well-known brand

Detailed photos
1. Filling valve for ref
2. Cap sterilizer tunnel for ref
Parameter

Model	CGF12-12-4	CGF18-18-6
Capacity	1000BPH	2000BPH
Applicable bottle	Plastic bottle 3L-5L Plastic screw cap
Applicable filling content	Mineral water, wine, non-carbonated water
Washing station	12	18
Filling nozzle	12	18
Capping head	4	6
Main motor power	2.2kw	2.5kw
Water pump power	0.37kw
Dimension (mm)	2500*2100*2450	3200*2500*2450
Weight (kg)	4000	5000

General set up

PLC	Mitsubishi Japan	1pc
Contactor	Germany	1pc
Air switch	Germany	1pc
	Germany	1pc
stabilized voltage supply	MingWei TaiWan	1pc
Photo electricity	Autonics Korea	1pc
Touch screen	Easyview Taiwan	1pc

---
