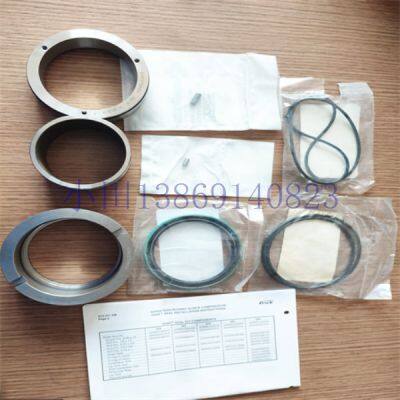

New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
With the continuous development of industrial technology, compressors, as indispensable equipment in the industrial field, their performance and stability directly affect the normal operation of the entire production line. Among numerous compressor brands, York TDSH193 compressor has won the favor of many users for its high efficiency and stability. However, during use, problems such as aging and wear of the compressor shaft seal often occur, requiring disassembly, maintenance, and replacement with a brand new shaft seal. This article will take the new shaft seal 534M0163G02 as an example to provide a detailed introduction to the disassembly and maintenance process of the York TDSH193 compressor parts.
1、 Preparation work before disassembly
Before disassembling the compressor, sufficient preparation work should be done first. Prepare the necessary disassembly tools, such as ratchet wrenches, square rulers, specialized shaft seal kits, etc. Meanwhile, ensure a clean dismantling environment to prevent dust and debris from entering the interior of the compressor. In addition, it is necessary to understand the structure and working principle of the compressor, so that each component can be accurately identified and operated correctly during the disassembly process.
2、 Disassembly process
1. Remove the coupling cover: Use a suitable tool to remove the coupling cover from the compressor for subsequent operations.
2. Dismantle the motor/compressor coupling: Remove the coupling between the motor and compressor, ensuring stability during the disassembly process to avoid damage to the equipment.
3. Remove the shaft seal: Gently remove the shaft seal, being careful that some oil may flow out of the sealing chamber during this process. Therefore, place a collection bottle or plate under the shaft seal to collect this oil.
4. Disassembling the moving ring: Use a specialized ratchet wrench to remove the positioning screw on the moving ring, and then remove the moving ring from the shaft. During this process, it is important to maintain the cleanliness of the moving ring to avoid scratches or damage.
5. Disassemble the static ring: Gently remove the static ring from the shaft, and also pay attention to keeping the static ring clean and intact.
6. Clean the shaft seal chamber: Use cleaning agent and a clean cloth to wipe the inside of the shaft seal chamber, ensuring that there are no impurities and pollutants.
3、 Replace with a brand new shaft seal 534M0163G02
1. Install the static ring: Gently place the static ring of the brand new shaft seal 534M0163G02 in the corresponding position of the shaft seal chamber, ensuring its installation is smooth and without deviation.
2. Install the moving ring: Place the moving ring above the stationary ring and secure it to the shaft using positioning screws. During the fixation process, it is necessary to ensure a good fit between the moving and stationary rings, without any gaps or misalignment.

---
