Product Description
Product Description
Product Description
Parameter
Model
| SL-1000
| SL-800
|
Capacity
| 0.7t/h
| 0.5 t/h
|
Power
| 3 KW
| 3 KW
|
Working Pressure of Cylinder
| ≤25Mpa
| ≤25Mpa
|
Maxmium Bearable Pressure
| ≤30Mpa
| ≤30Mpa
|
The route of Piston Rod
| 870mm
| 700
|
Diameter of Basket
| 1000 mm
| 800
|
Height of Bsket
| 1100 mm
| 950
|
Volume of Bsket
| 780L
| 470L
|
Dimension
| 2280×2000×3000mm
| 1925×1800×2665mm
|
Weight
| 1950kg
| 1600kg
|
Brief introduction of

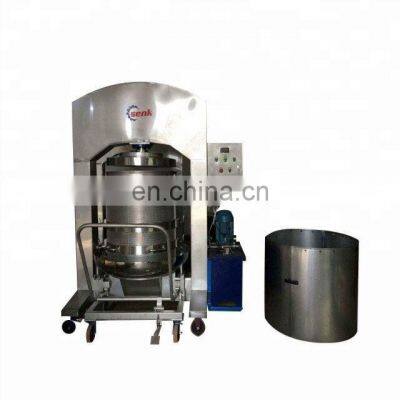

This ice grape press machine is a special machine for making ice wine.
This machine is produced with technology imported from Italy. The hydraulic system is full
auto-controlling. There is a juice receiving pallet equipped with wheels under the box column .The hydraulic is adjusted by hand and it is east to operate.
The box column is make up by two semi-circles .It has two frame type: one is batten frame and the other is stainless steel plate punching frame. Batten frame is the traditional and ancient process of making wine in Europe. With it, the brand popularity will be improved. Stainless steel plate punching frame is elegant appearance and its grade is high.
Feature
1.High efficiency with low consumption.
2.Automatic, easy to operate and maintain.
3.Made of stainless steel, durable and sanitary.
4.Labor-saving and durable long life span.
Working principle for the grape press machine
This ice grape presser consists of rack, hydraulic system, mobile pressing blade, mobile juice receiving plate and bi-parting box column.
The juice receiving plate is settled on the carframe with wheels and the box column is over the juice receiving plate. After putting into grapes ,the trolley is placed under the mobile pressing plate of rack. Then the juice are squeezed out under the function of mobile pressing plate .To improve the juice rate of the skin ,there are guide plates between grapes. Grape juice flow out from juice getting out pipe after received by juice receiving plate.
Hearty service:
1.Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operating video & instruction will be sent to clients, to help them better use the machines.
3.Any problems occur while using, professional advice will be given by us.
4.All kinds of frequently used parts are supplied from us all the year round.
Zhengzhou Shuliy Machinery Co.,Ltd ,established in 2010,is a professional manufacturer.We located in Zhengzhou city with convenient transportation. In recent years, our company has introduced a series of advanced equipment including plastic pellet making machine,Egg tray making machine,Hydraulic Baler,Fiber Extracting machine,Fertilizer machine,Copper wire recycling machine,Shredding machine etc. In addition, we have obtained ISO,QUALITY,CE certificates.Our products are also exported to clients in such countries as Nigeria,Cameroon,Pakistan,Congo,Ghana,India,Philippines,Malaysia,Indonesia,Canada,Australia,Congo,Nigeria,Sudan,Saudi Arabia,,India,Russia,Mongolia,Kazakhstan and other countries.
We also welcome OEM and ODM orders. More request, you can talk to our customer service center about your purchasing requirements.
FAQ:
Q:Why Choose Us?
A:1). Several Year's Experience.We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
Q:What should we do if we have problems during use?
A:We provide machine use video and operating manuals. At the same time, we also have after-sales service 24 hours online service.
Q:Can we customized motor voltage?
A:Yes.We will transform the voltage according to the customer's needs.
