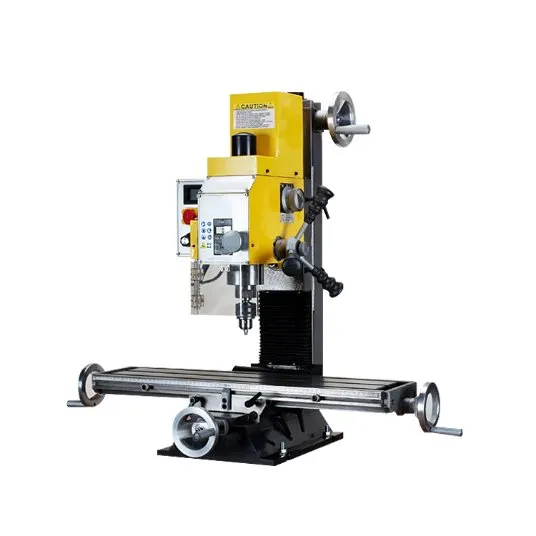

Vertical Small Gear Head Bench Milling and Drilling Machine for Metal

US$990.00-8,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
DMC7045/DMC7040
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
880 x 832 x 1140mm
Trademark
SMAC
Origin
China
HS Code
1
Production Capacity
1000

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg

Product Description

Product Description

1 Standard Accessories Optional Accessories
2 Allen wrenches 3,4,5,6mm Machine stand
3 Wedge Power feed attachment
4 Wrench Paraller vice
5 Drill stock Drill chuck
6 Screw driver 6" Milling chuck
7 Drawbar washer Change sleeve
8 Milling chuck
9 Boring bar
10 Auto-tapping electrical system

odel ZAY7045 ZAY7045G ZAY7045G ZAY7040 ZAY7040G ZAY7040FG ZAY7032 ZAY7032G ZAY7032FG ZAY7020 ZAY7020G
Drilling capacity 45mm 40mm 32mm 20mm
Face milling capacity 80mm 80mm 63mm 63mm
End milling capacity 32mm 32mm 20mm 14mm,20mm
Distance from spindle nose to table 450mm, 680mm 450mm, 680mm,440mm 450mm, 680mm,440mm 382mm,350mm
Min. distance from spindle axis to column 193.5mm,272.5mm,260mm 193.5mm,272.5mm,260mm 193.5mm,272.5mm,260mm 202mm,175mm
Spindle travel 130mm 130mm 130mm 120mm,130mm
Spindle taper M.T.4 or R8 M.T.4 or R8 M.T.3 or R8,M.T.4 or R8 M.T.3
Step of spindle 12,6 12,6 12,6 12,6
Range of spindle speed 50Hz 80-2080,80-1250r.p.m. 80-2080,80-1250r.p.m. 80-2080,80-1250r.p.m. 80-2080,80-1250r.p.m.
60Hz 100-2500,95-1500r.p.m. 100-2500,95-1500r.p.m. 100-2500,95-1500r.p.m. 100-2500,95-1500r.p.m.
Swing diameter of headstock 405mm,680mm, 405mm,680mm 405mm,680mm 405mm,680mm
Swivel angle of headstock horizontally 3600 3600 3600 3600
perpendicularly +900 +900 +900 +900
Size of table 800 x 240mm2, 700x 240mm2 800 x 240mm2, 700x 240mm2 800 x 240mm2, 700x 240mm2 585 x 190mm2
Forward and backward travel of table 175mm 175mm 175mm 150mm
Left and right travel of table 500mm, 400mm 500mm, 400mm 500mm, 400mm 380mm
Power 1.5kw (2Hp) 1.1kw (2Hp),1.1kw(0.75Hp) 0.75kw (1Hp) 0.75kw (1Hp),0.55kw (1Hp)
Voltage/Fequency As custmers requirement As custmers requirement As custmers requirement As custmers requirement
Overall height (Without stand) 1060mm; 1300mm;1020mm 1060mm; 1300mm;1020mm 1060mm; 1300mm;1020mm 1060mm; 1300mm
Net weight 285kg,320kg,325kg 283kg,318kg,323kg 280kg,315kg,323kg 270kg,300kg
Gross weight 335kg,370kg,375kg 333kg,368kg,373kg 330kg,365kg,370kg 330kg,350kg
880 x 770 x 1140mm3 880 x 770 x 1140mm3 880 x 770 x 1140mm3 880 x 770 x 1140mm3
Packing size 880 x 832 x 1140mm3 1030 x 770 x 1140mm3 880 x 832 x 1140mm3
1030 x 832 x 1140mm3 1030 x 832 x 1140mm3 1030 x 832 x 1140mm3
Loading amount (overall height) 36pcs/20container 18pcs/20container 28pcs/20container 36pcs/20container 18pcs/20container 28pcs/20container 36pcs/20container 18pcs/20container 28pcs/20container 36pcs/20container 18pcs/20container
