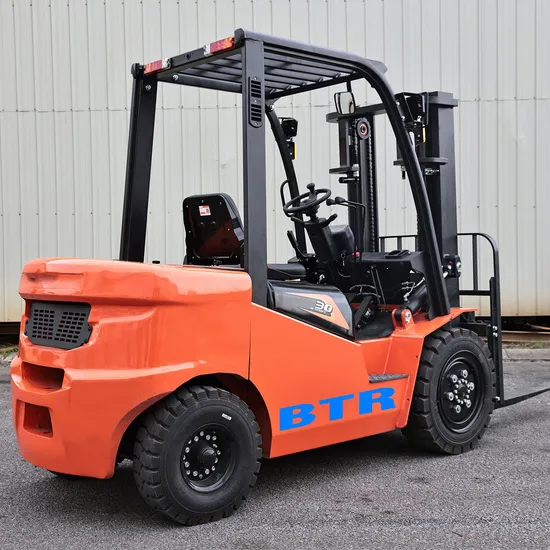

BTR-linde forklift

Product Description

Wider driving field of view
Wide view frame with optimized design, more compact frame and hose pulley block; It is not easy to block the operator's line of sight, and the cargo fork is larger in opening size, and the field of vision is wide.
Large arc top guard frame, good Angle grid plate, increase the driver's upper view.
Small diameter steering wheel and instrument right, lower the height of the instrument bench, effectively increase the fork tip and the visible goods.
Excellent ergonomics
According to the ergonomic design of tilt adjustable small diameter steering wheel, bridge combination switch, the driver feels good, the seat front and rear adjustment, the operator can choose the best driving position.
Big handle on the car, can meet the needs of different heights, more comfortable on the car;
Torque steering, steering more light;
Excellent stability
The drive motor adopts the international advanced parallel arrangement method, the battery sinks to the bottom of the frame, and the stability is excellent.
Rear armrest with horn function, the driver's reversing seat posture is stable, safe and comfortable; (optional)
For users who need to replace batteries frequently, side loading and unloading batteries can be done manually or by electric carrier batteries, which is convenient, smooth, and safe.
Low noise and low vibration design to create a quiet working environment
Motor, battery and other parts of the buffer device, as well as optimized body frame structure, reduce the vibration of the whole machine;
Load sensing steering is used in conjunction with a low noise pump for lower vehicle noise
Before the fork touches the ground, the descent speed will automatically slow down; Gentle contact with the ground greatly reduces collision noise.
The rear axle adopts a flexible shock absorption system to effectively filter the road clutter and improve the driver's comfort.
Convenient and efficient maintainability
Fully open cover, side panel structure, easy to disassemble the battery maintenance is very convenient.
Easy to open the fully closed electronic control cover plate, electronic control and other important components are all sealed in the counterweight, dustproof and waterproof, good maintainability.
Equipped with large screen LCD display instrument, can directly display the vehicle running status, with fault display and misoperation alarm function;
Reliability and security
Motor controller, contactor, power plug, emergency power switch, instrument panel, accelerator and other major electrical components are all made of internationally renowned brand products.
Advanced AC high frequency MOSFET integrated controller Controller and CANbus data bus technology
High frequency MOSFET integrated controller ensures smooth and accurate walking and lifting control, excellent speed regulation performance, good motor and electric control matching performance, with regenerative braking, reverse braking, slope anti-slide and other functions, safe and reliable.
Operation sequence protection function and electronic self-protection function,
Emergency power-off switches are standard and comply with European safety regulations.

Item

Unit

CPDB10

CPDB10AC

CPDB15

CPDB15AC

CPDB20

CPDB20AC

CPDB25

CPDB25AC

CPDB30

CPDB30AC

CPDB50AC

Rated loading Capacity

kg

1000

1500

2000

2500

3000

5000

Load center distance

mm

500

500

500

500

500

500

Max Lifting Height

mm

3000

3000

3000

3000

3000

3000

Fork (length * width * thickness)

mm

1070× 100× 35

1070× 120× 35

1070× 120× 40

1070× 120× 40

1070× 125× 45

1070× 150× 50

Door frame gradient

deg

6/12

6/12

6/12

6/12

6/12

6/9

Maximum speed

km/h

13/11

15/14

13/11

15/14

11/10

13/12

12/10

15/14

12/10

15/14

15/13

Lift speed

mm/s

400/260

380/280

400/260

380/280

400/270

380/280

380/240

450/270

380/260

440/260

340/220

Climbing ability

%

12/10

14/13

12/10

14/13

12/10

14/13

12/10

14/13

12/10

14/13

14/13

Vehicle length

mm

3178

3178

3275

3275

3590

4030

Vehicle width

mm

1095

1095

1150

1150

1240

1580

Vehicle height

mm

2075

2075

2200

2200

2160

2260

minimum turning radius

mm

1970

1970

2050

2050

2250

3150

Wheelbase

mm

1370

1370

1500

1500

1600

2000

wheel base

mm

890/920

890/920

960/950

960/950

1000/970

1190/1270

Minimum ground clearance

mm

105

105

115

115

110

110

Motor power

kw

6.5/8.6

7/10

6.5/8.6

7/10

6.5/8.6

7/10

8.5/8.6

10/10

10.2/10

11/13

9× 2/10× 2

Front wheel

6.50-10

6.50-10

7.00-12

7.00-12

28× 9-15

28× 12.5-15

The rear wheels

5.00-8

5.00-8

18× 7-8

18× 7-8

18× 7-8

7.00-12

Explosion-proof power supply units

V/A@h

48/400

48/420

48/630

48/630

80/500

80/700

Weight

kg

2900

2900

4100

4500

5200

7100

Using Zones

1 Area\2 Area

Explosion-proof mark

ExsdIIBT4

---
