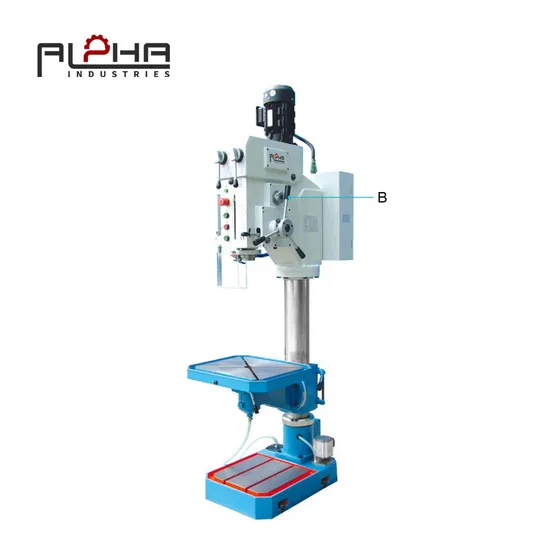

Selling at a Low Price Heavy Metal Lathe DN Serial Drills Drilling Machine

Product Description

DN5040 & DN5050 come with as accessories
• Speed display
• Depth display
• up & down motor
• Electro magnetism feed
• Oil pump lubrication

Product Parameters

Model NO.	DN5040 / DN5050	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	960×590×2150mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

SPECIFICATIONS
Model No.	Unit	DN5030A	DN5035A	DN5040A	DN5050A
max.drilling dia. (steel)and tappingdia	mm	φ30/M20	φ35/M22	φ40/M24	φ50/M30
max.milling cutter diameter	mm	N/A	80	80	80
max. travel of spindle	mm	125	155	190	200
max.distance from spindle to generating lineof column	mm	280	320	340	360
max.distance from spindle nose to surface of worktable	mm	650	625	665	590
max.distance from spindlenose to surface of base worktable	mm	1120	1180	1195	1175
max. travel of worktable and bracket/ manual(mechanical)	mm	605	560	570(450)	530(410)
Swivel angle of worktable		±45	±45	±45	±45
spindle taper bore		MT3	MT4	MT4	MT4
spindle speed steps		stepless	stepless	stepless	stepless
spindle speed range	r/min	70~249,249~3500	65~460,465~3250	60~400,396~2600	50~316,316~2200
spindle feed steps		3	3	4	6
spindle feed range	mm/r	0.1,0.2,0.3	0.1,0.2,0.3	0.1,0.2,0.3,0.4	0.08~0.50
diameter of column	mm	120	120	140	160
dimension of worktable	mm	450×380	500×380	520×440	580×460
effective working area of worktable	mm	335×340	370×360	405×395	445×435
power of motor	kW	1.1	1.5	2	3
machine dimension	mm	785×480×2035	849×545×2290	849×545×2290	950×680×2405
packing dimension	mm	960×590×2150	870×510×2140	1000×650×2220	1150×680×2250
N.W./G.W.	kg	320/400	550/600	550/600	650/705

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
