Basic Info.
Model NO.
DHJBJ-120-4 and DH-650
Transport Package
Wooden Packaged or Stretch Film Packaged
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
9.00cm * 1.20cm * 1.20cm
Package Gross Weight
1100.000kg
Product Description
Product Description

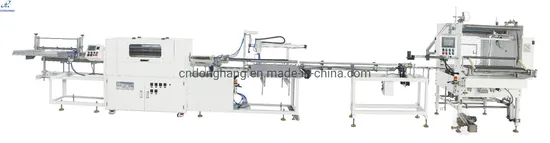

The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup and pack the cups.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
| Max. Speed of Curling | 600-900pcs |
| Max. Dia. Of Curling | 50-120mm |
| Main Motor | 1.5Kw |
| Feeding Motor | 0.09Kw |
| Heating Power | 10Kw |
| Overall Size | 5200×1100×1300mm |
| Power | 380V/50HZ |
| Weight | 0.9T |
| Air Pressure | 0.6MPa |
AUTO.PLASTIC CUP PACKING MACHINE
Model:DH-650 Technical Parameter
| Capacity | 10-25pcs |
| Dia of Curling | 40-95mm |
| Packing length | 520-650mm |
| Packing Material | HDPE,LDPE,PP,POF |
| Thickness of Packing Film | 15-40um |
| Total Power | 4.5kw |
| Air Source | 0.6Mpa |
| Weight | About 700kg |
>>
