High Speed Fingerless Model Single Facemaking Machine Line Expert Manufacturer

Product Description

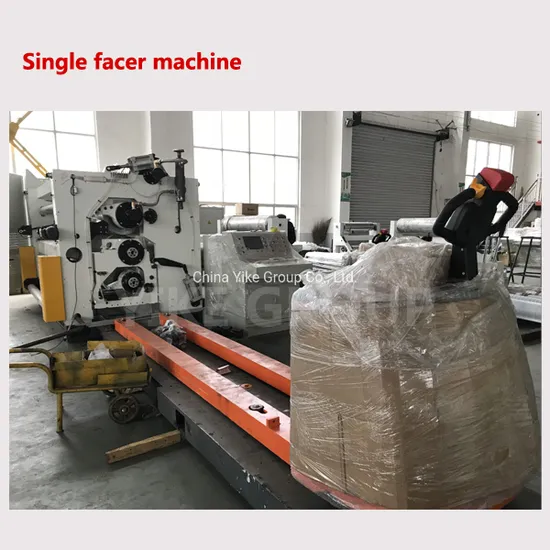

High Speed Fingerless Model Single FaceMaking Machine Line Expert Manufacturer
structural feature:
adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.
install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency
Active force variable frequency motor drive, energy efficient, low failure rate.
Glue wide electric adjust to changes in the width of the paper used.
Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.
Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.
technical parameters:

effective width	1800mm
operate direction	left or right(Determined in accordance with the customer's facility)
design speed	150m/min
range of temperature	160-180ºC
air source	0.4-0.9Mpa
steam pressure	0.8-1.3Mpa
equipment	Lmx3.5*Wmx1.7*Hmx2.2

Roller diameter parameters:

corrugated roller	up¢313mm down¢316mm pressure roller:¢320mm
glue roller:	¢240mm
fixed paste roller	¢140mm
preheat roller	¢402mm

powered motor parameters:

main frequency drive motor	18.5KW
	rated voltage 380V 50Hz Continuous (S1) working standard
suction motor	11KW rated voltage:380V 50Hz Continuous (S1) working standard
glue reducer	100W rated voltage:380V 50Hz Continuous (S2) working standard
glue adjusting motor	100W*2 rated voltage:380V 50Hz short(S2) working standard
glue pump motor	2.2KW rated voltage:380V 50Hz Continuous (S1)working standard

Auxiliary equipment:
1,Special pulley crane configuration tile roll maintenance, convenient to use when maintenance tile roll, and fast.
2,Configuring an external guide pulley crane to lengthen the trip, in order to successfully remove the line outside the repair parts.
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
wallboard	Production by own	HT250
Transmission box	hebei	QT450
Corrugated roller		Alloy steel corrugated
Rotation joint and Metal Hose	Fujian quanzhou yujie
Main frequency motor	Hebei hengshui yongshun motor factory
Reducer motor	Taiwan chengbang
Bearings	HRB,ZWZ,LYC
Corrugated roller and pressure roller bearing	America Timken
Seat belt bearing	Zhejiang wuhuan
High pressure fans	Shanghai yingfa motor factory
cylinder	Zhejiang sonor CSM
Solenoid valve	Zhejiang sonorCSM
traps	beijing	Inverted bucket type
contactor	France
button	Zhengtai NP2 series
Air switch	French
Position Sensor	JapanOMRON
Frequency controller	Taiwan delta
PLC	Taiwan delta
Human Machine Interface	Taiwan WEINVIEW or MCGS
Lose rubber pump	Hebei botou

---
