Aoasis Cjx2-09 9A LC1-09 Contactor 3pole 3 Phase 690V Magnetic AC Contactor

Product Description

Product Description

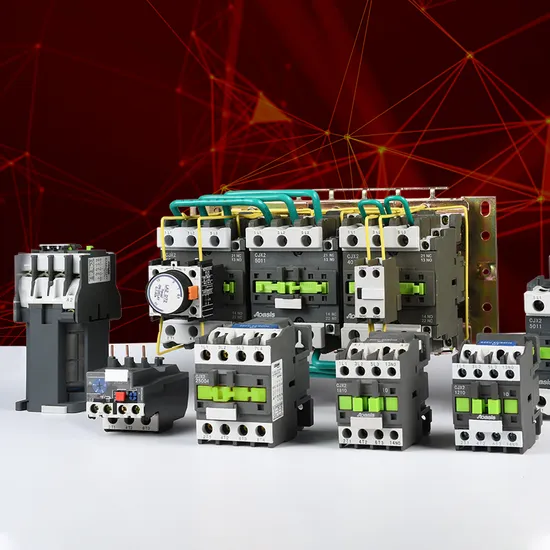

CJX2-series contactor is suitable for using in the circuit up to the rated voltage 600V AC 50Hz or 60Hz,DC voltage 220V rated current 150A,for making and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air delayer,machine interlocking device and etc.It is combined into the delay contactor, mechanical interlock contactor, switchover capacitor contactor, star-delta starter, with the thermal JR28 relay; it is combined into the electromagnetic starter.

Type			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4		200-240V	2.2/3	3/4	4/5.5	5.5/7.5	7.5/10
		380-440V	4/5.5	5.5/7.5	7.5/10	11/15	15/20
		500-550V	5/7	7.5/10	9/12	15/20	18.5/25
		660-690V	5.5/7.5	7.5/10	10/13.5	15/20	18.5/25
Rated Current A(AC-3) IEC60947-4-1 GB14048.4		200-240V	11	15	22	30	40
		380-440V	9	12	18	25	32
		500-550V	7	9	12	18	21
		660-690V	7	9	12	18	21
Conventional Thermal Current Ith:(A)			25	25	32	40	50
Rated Insulated Voltage Ui:(V)			690
Auxiliary Contact AC-15	Contact Arrangement	Standard	1NO
		Special	1NC
	Rated Current A(AC-15) IEC60947-5-1 GB14048.5	200-240V	1.6
		380-440V	0.95
	Conventional Thermal Current Ith:(A)		16
Mechanical Life(Million Times)			8

Dimensions(mm):
