High-Power Transfer Liquid Concrete Tool Liquid Concrete Pump Mini Concrete Pump

Product Description

To customers:
1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Product Description
Products Description:

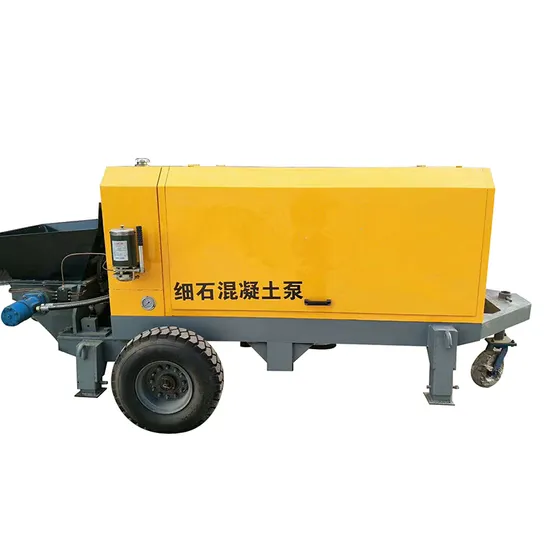

Hengwang HW30-47 Concrete Pump
Max Vertical Delivery Distance : 120m
Max Horizontal Delivery Distance : 150mmDelivery Capacity: 30-35m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Parameters

Concrete Pump (Model: HW30-47)
Power	47kw
Voltage	380V, (We also have Diesel type)
Max.Aggregate Size	30mm
Max Vertical Delivery Distance	120m
Max Horizontal Delivery Distance	150m
Delivery Capacity	30-35m3/h
Cylinder Stroke	1500mm
Diameter of Delivery Pipe	100mm
Total Weight	2000kg
Steel pipes	30m
Hoses	10m
Overall Dimension (L*W*H)	4100*1500*1700mm

Detailed Photos

Packaging & Shipping
Wooden case
