Product Description
Product Description

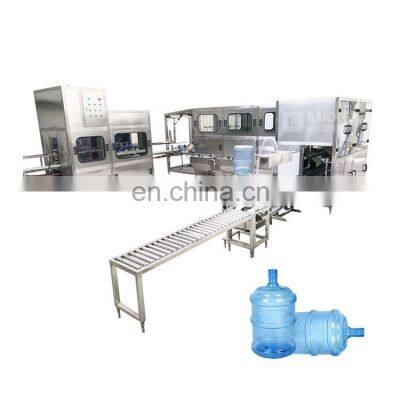

5 Gallon Water Bottle Washing Filling And Sealing Machine / 20L Bottle Filling MachineProduct DescriptionFunctions and features:1.Automatic break protection for power leakage and short circuit;2.Under-pressure protection: when incoming air's pressure is Less than or equal 0.5MPa, the equipment will be automatically stopped.3.Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.4.Remarks:We can add other functions as customer's requirements like:hot tank heating washing,bottle external washing,cap washing ,capacity note and man-machine control. Whole 5 gallon water filling line:Detailed ImagesAutomatic decaperAutomatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line.It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.Automatic bottle interior and exterior brushing machine:Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity. Automatic bottle loader:The empty barrel cleaned by inside and outside brushing machine sending through automatic loading system by transmission chain, loading barrel counter counting 2pcs barrels, blocking barrel cylinder action to stop feeding barrel, loading and pushing barrel action, and pushing barrel to barrel inverting frame reset, loading cylinder action to invert the barrel to level position and waiting for feeding barrel.Washing part:It has 2 rows and 9 steps washing Water amount of filing: 6T/H Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)Filling part:Uploading and dropping barrels changed from 45 degree to translatory which is more stable.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.Capping part:Liquid level difference is controlled in 1cm. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.Light checker and steam heating shrink machine:Inspection light is used for lighting when inspect whether exist sundries in barrel.Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.Automatic bag packing machine:Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.Leakage tester:leakage checking machine is a professional machine to check leakage, after gas filling, pressure keeping, pressure testing, the machine will push damaged barrels out of conveyor.Bottle conveyor system:Including: empty feeding system, plastic chainFull barrel conveyor system, SUS34 material Main technical parameterModelQGF-100QGF-200QGF-300QGF-450QGF-600QGF-900QGF-1200Filling heads12234612Volume3&5 GallonBarrel size Φ270*490mmCapacity(b/h)60-100100-240250-300400-450600-800800-9001000-1200Air pressure(MPa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.60.6Air consumption(m³/min)0.370.370.60.811.51.8Motor power(kw)1.381.753.83.87.59.7513.5Rated power(kw)1.381.753.83.87.59.7513.5Rated voltage380V/ 50HZWeight(KG)68080015002100300035004500Related productSemi automatic 5 gallon bottle washing machine: This machine operated by manual and is suitable for cleaning inside and outside of 5 gallon bottle. Semi automatic 5 gallon / 20L PET bottle blow molding machine: Semi automatic Blowing Machine for 90BPH-180BPH from 5 gallon bottle with one cavity, 5L bottle with 2 cavity can be also used in this blowing machine RO System:Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your waterfilling machine from capacity from 500L/Hr to 50000L/hr.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc5 gallon water filling line: It include decapper, 5 gallon washing filling capping machine, light checker, heat steam shrinking machineAutomatic shrink labeling machine for 5 gallon neck label: Capacity: 50-100bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Company information Workshop detail Our teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
