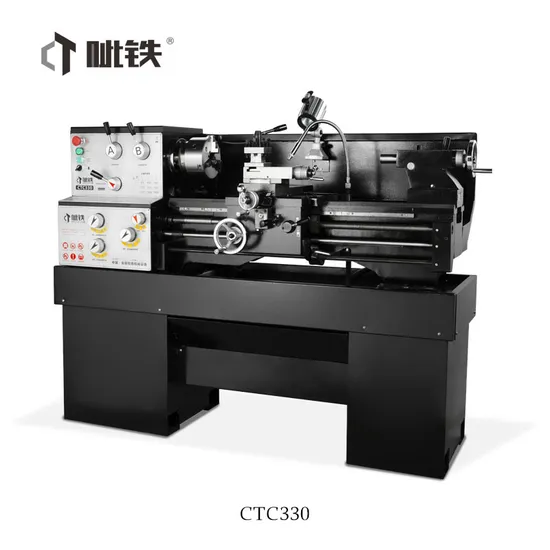

Mini Baby Bench Hobby Metal Manual Lathe Machine Ctc330 with China Low Prices

US$3,015.00
5-9 Sets
US$2,915.00
10+ Sets

Basic Info.

Model NO.
Ctc330
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Stnadard Wooden Packing
Specification
1650*700*1300mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max. swing over bed 330mm
Max. swing in gap 510mm
Max. swing over tool post 210mm
Max.machining length 750mm
Spindle taper MT5
Spindle bore 38mm
Max. travel of tail-stock sleeve 100mm
Taper of tail-stock MT3
Rail width 210mm
Maximum height of turning tool 20mm
Middle carriage travel 200mm
Small carriage travel 120mm
Metric thread/Grade 0.45~4mm/17
Inch thread/Grade 41/2~64T.P.I(24)
Transverse feed 0.015~0.4mm
Longitudinal feed 0.06~1.60mm
Modulus thread/Grade 0.45~4mm/17
Diameter pitch thread/Grade 15~192DP/20
Spindle speed range/Grade 65~1600r/min(9)
Motor power 2KW
Net weight/Gross weight 660kg/720kg
Overall dimensions 1650x700x1300mm
Packing Size 1800x800x1400mm
