Automatic 3 Sides Sealing Laminated Bag Aluminum Foil Bag Making Machines Food Snack Packing Pouch Paper Bag Making Machine

US$20,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SW-350
Voltage
380V
Seals Mode
Trilateral Seals
Speed
Medium
Continuous-Rolled
No
Sealing & Cutting
Heat-Sealing Heat-Cutting
Layer
Single
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Pouch Bag Making Machine
Material
BOPP, OPP, CPP, PE, Paper, etc
Cutting Speed
30-120PCS/Min
PLC+Touch Screen
Taiwan
Photocell
Sick, Germany
Inverter
Delta, Taiwan
Servo Motor
Yaskawa, Japan
SSR
Fotex, Taiwan
Weight
5000kgs
Dimension
9000*2000*1870
Power
45kw
Transport Package
Wooden Box Packing
Specification
400-600
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
8477800000
Production Capacity
1000 PCS/Year

Product Description

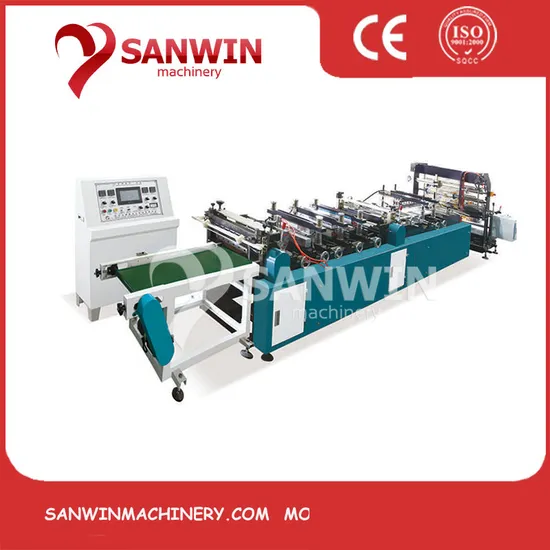

Pouch Bag Making Machine
Application:
Economic type laminated film bag making machine,
It is used for various kinds of laminated material ,which can produce soft package bag ,like three side sealing bag ,fruit bag ,candy bag ,sanitary bag ,etc Main Technical Parameters:
Model SW-350
Max.unwinding width 700mm
Max.unwinding diameter 600mm
Length 70-1500mm
Max.width 320mm
Capacity 50-120PCS/MIN
Total power 10KW
Weight of Machine 2500KGS
Dimension 8000×1000×1570mm
Sample:
Machine Details:
Workshop:
Chinaplas Fair 2018:
FAQ: 1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,film blowing machine,etc.
and we also have one trading company
2.Q:Where is your factory Located? How can we visit it? A:Our factory is located in Ruian City,Zhejiang Province,China From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours. 3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
Our Service : 1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
