Da66t Da69t Hydraulic Electric Press Brake CNC 6+1 Axes

Product Description

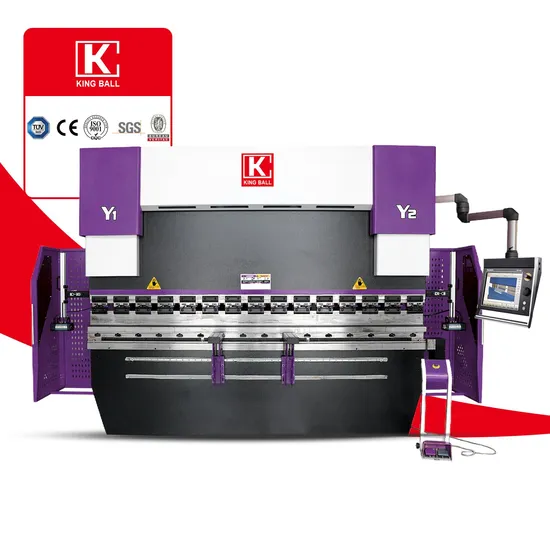

cnc hydraulic press brake KCN-4016 with DA52S controller 4+1 axis
Model: KCN-4016
4+1 Axis
Main functions and features
1.Overall welded and processed structure.
2.Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3.Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
4.Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5.Switzerland cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
6. Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
7.Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
technical Parameters

No.	item	parameter	unit
1	Nominal pressure	400	KN
2	Table length	1600	mm
3	Between columns	1200	mm
4	max shut height	370	mm
5	slide stroke	165	mm
6	Throat depth	320	mm
7	Main motor power	5.5	KW
8	Down Speed	180	mm/s
9	Pressing Speed	12	mm/s
10	Return Speed	160	mm/s
11	Control axis	X+Y1+Y2+R +W	/
12	X axis Stroke	500	mm
13	X axis Speed	300	mm/s
14	R axis Stroke	150	mm
15	R axis Speed	50	mm/s
16	Backgauge Stoppers	2	/
17	Overall dimension	2100x1450x2150	mm
18	Machine weight	3500	KG

Main configuration

Name	Producer
CNC controller	DA52S
Main motor	Siemens Germany brand
Electrical components	France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Grating ruler	GIVI Italy brand
Tubing connector	EMB Germany Brand
Servo Motor and drive	Thinkvo China brand

DA-52s
The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.
DA-52s features Quick, one page programming Hotkey navigation 7" VGA colour TFT Up to 4 axes (Y1, Y2, and 2 auxiliary axes) Crowning control Tool/material/product library USB, peripheral interfacing
The standard accessories are in the below:
1.Anchor bolt
2.Hex nut
3.Seal ring
4.Gasket
5.Grease gun
6.Allen wrench
7.Foot switch
8.Front support arms
9.Electrical box key, control panel key
10. Operation manuals

---
