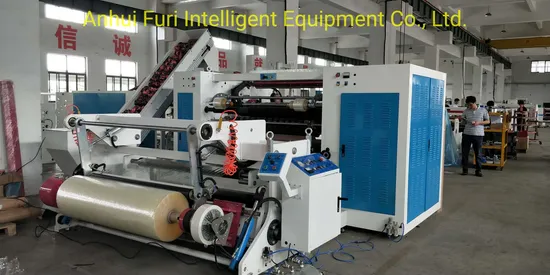

BPA Fully Automatic Four Shafts Exchange Slitting Rewinding Machine
Application: suitable for slitting BOPP, film, masking tape, etc.
Effective cutting width: 1300mm/1600mm. Other width and materials to be designed after communication.
| > EFFECTIVE WIDTH | 1650mm | |
| > ROLLER WIDTH | 1700mm | |
| > SLITTING WIDTH | 18MM-68MM | |
| > ACCURACY | +/-0.1mm | |
| > REWIND CORE I.D. | φ76.2±0.2MM | |
| > CORE TYPE | PAPER CORE | |
| > UNWIND CORE I.D. | φ76.2±0.2MM | |
| > CORE TYPE | PAPER CORE | |
| > UNWIND DIAMETER | MAX.800mm | |
| > REWIND DIAMETER | MAX.300mm (FOUR-SHAFT EXCHANGE) | |
| > MACHINERY SPEED | MAX.300M/MIN | |
| > TOTAL POWER | 30KW | |
| > POWER SOURCE | 380V 50HZ 3PHASE | |
| > AIR SOURCE | 5 KG (PREPARED BY USER) | |
| > MACHINE WEIGHT | 12.5T | |
| >> STANDARD ACCESSORIES | | |
| > MAIN DRIVE MOTOR | 7.0KW SIEMENS SERVO MOTOR & SERVO COTROLLER | 1 SET |
| > DRIVE ROLLER | EMBOSSING TREATMENT | 1 SET |
| > METER COUNTER | DIGITAL METER COUNTER ACCURACY ±0.5M/100M | 1 SET |
| > TENSION CONTROL | AUTOMATIC CONSTANT TENSION CONTROL | |
| > AUTOMATIC TABBING | NON-STOP MACHINE TABBING SET | 1 SET |
| | RODLESS CYLINDER TYPE | |
| | TABBING ROLLER ELECTOMAGNETIC CLUTCH DRIVE | |
| > AUTOMATIC CUT-OFF | AUTO CUT-OFF SET | 1 SET |
| | SAW TEETH CUT-OFF BLADE | |
| >> UNWIND UNIT | | |
| > UNWIND TENSION CONTROL | PNEUMATIC BRAKE 40KGF- ITALY RE | 1 SET |
| > UNWIND SET | SEPARATE UNWIND STAND WITH SHAFT | 1 SET |
| > WEB GUIDE CONTROL | MANUAL CONTROL | 1 SET |
| > NOISE HOOD | UP/DOWN LIFTING TYPE | 1 SET |
| >> REWIND UNIT | | |
| > REWIND MOTOR | 3.5KW SIEMENS SERVO MOTOR & CONTROLLER | 2 SETS |
| > REWIND SHAFT | 3" DIFFERENTIAL SHAFT | 4 SETS |
| | REMOVABLE TYPE, CYLINDER PUSH SPLINE TO COMBINE POWER | |
| | PLASTIC SLIP RING TYPE, SPRING CONTROL TENSION | |
| > REWIND ROTATE | FOUR-SHAFT EXCHANGE ROTATE TYPE | 1 SET |
| | REDUCER AND CYLINDER AUXILIARY POSITIONING | |
| > FINISHED TAPE WIPE DOWN | TO WIPE DOWN FINISHED TAPE END PART WRINKLE | 1 SET |
| >> MANIPULATOR UNIT | | |
| | TO PICK-UP FINISHED TAPE & LOAD/UNLOAD WIND SHAFTS | 1 SET |
| | JOINT 1 ROTATE DRIVE: SIEMENS 1.5KW SERVO MOTOR | 2 SETS |
| | RV-40 REDUCER (ZHENKANG) | |
| | JOINT 2 ROTATE DRIVE: SIEMENS 0.6KW SERVO MOTOR | 2 SETS |
| | RV-20 REDUCER (ZHENKANG) | |
