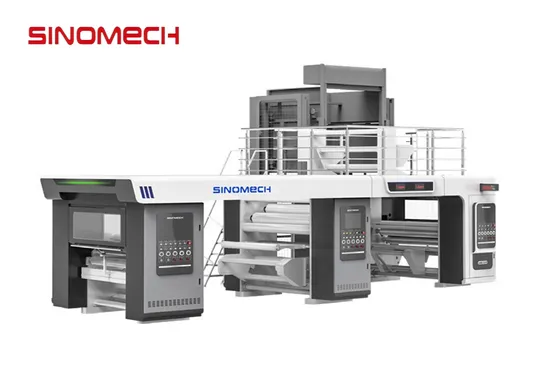

Sinomech Model A400-3V Vertical Triplex Solventless Laminating Machine for Flexible Packaging Designed for Al Foil Lamination Vertical Three-Layer Laminator

Product Description

Sinomech Model A400-3V Vertical Triplex Solventless Laminating Machine for Flexible Packaging Designed for Al Foil Lamination Vertical Three-Layer Laminator
Model A400-3V Triplex Solventless Laminating Machine, the world first vertical three-layer laminator, developed by Sinomech Corp., is suitable for high-speed solventless lamination of different types of plastic films and metalized films, and especially designed for Al foil lamination.
Product Parameters Product Parameters

Model NO.	A400-3V
Mulching Modes	Three-Layers Lamination
Membrane Material	BOPP/CPP/PET/PE/VMPET/VMCPP/NY/AL etc.
Max.Laminating Speed	400m/min
Max web width	1050/1300/1500mm
Max Unwinding Dia	800mm

Max Rewinding Dia	800mm
Core ID	3"or 6"
Installation power	152KW
Machine weight	About 15,000 kg
Machine dimensions	8200(L) x 4800(W) x 4800(H) mm (without mixer)
Machine color	Sinomech standard or as requested

Materials to be laminated

Materials	Thinkness
BOPP	15-40 µm
CPP	18-60 µm
PET	12-30 µm
PE	50-200 µm

VMPET	12-30 µm
VMCPP	18-60 µm
NY	10-15 µm
AL	6-9 µm

Company Profile Company Profile Sinomech Corporation, established in 2007, with the headquarter in Guangzhou, is the Chinese leading supplier of solventless laminating equipment and other related machines.
Exhibition Show Exhibition Show We are a Chinese laminator manufacturer. In order to keep ahead of the lamination industry, we participated in many exhibitions at home and abroad. Certifications Certifications Sinomech has received international certificates of ISO9001, ISO14001, ISO45001, and ESG, etc. All the products are conformed to CE safety standards.
