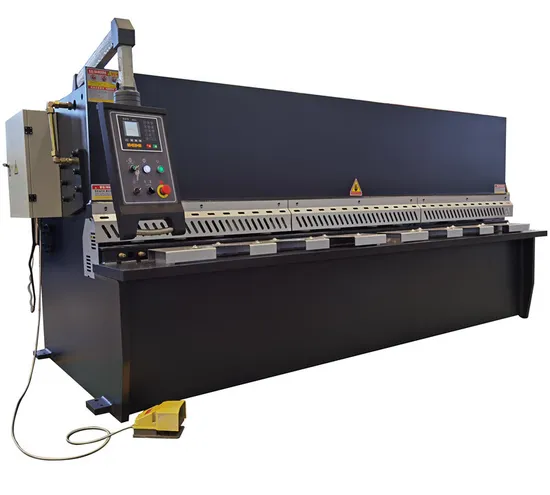

High Speed CNC Guillotine Shearing Machine 12*3200mm for Metal Plate Durmapress

Product Description

PRIMA QC11K-12/3200 Guillotine shearing machine Stainless steel metal sheet iron plate sheet cutting machine
Product introduction Huge model metal sheet hydraulic guillotine cutting machine
Cutting length from 2000mm to 12000mm
Cutting thickness from 8mm to 60mm Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine

No	Model	Max cut thickness mm	Max cut length mm	Ram Stroke n/min	Cutting angle °	Motor kw	Machine Szie mm
1	4x2500	4	2500	20-40	0.5-1.5	5.5	3100x1600x1700
2	4x3200	4	3200	20-40	0.5-1.5	7.5	3800x1800x1700
3	6x2500	6	2500	16-35	0.5-1.5	7.5	3150x1650x1700
4	6x3200	6	3200	14-35	0.5-1.5	7.5	3860x1810x1750
5	6x4000	6	4000	10-30	0.51.5	7.5	4630x2030x1940
6	6x5000	6	5000	10-30	0.5-1.5	11	5660x2050x1950
7	6x6000	6	6000	8-25	0.5-1.5	11	6680x2200x2500
8	8x2500	8	2500	14-30	0.5-1.5	11	3170x1700x1700
9	8x3200	8	3200	12-30	0.5-1.5	11	3870x1810x1780
10	8x4000	8	4000	10-25	0.5-1.5	11	4680x1900x1860
11	8x5000	8	5000	10-25	0.5-1.5	15	5680x2250x2200
12	8x6000	8	6000	8-20	0.5-1.5	15	6800x2350x2700
13	10x2500	10	2500	10-25	0.5-2.0	15	3270x1730x1800
14	10x3200	10	3200	9-25	0.5-2.0	15	3990x2250x2200
15	10x4000	10	4000	6-20	0.5-2.0	15	4720x2490x2500
16	10x5000	10	5000	7-20	0.5-2.0	22	5720x2600x2800
17	10x6000	10	6000	6-20	0.5-2.0	30	6720x2500x2550
18	12x2500	12	2500	10-25	0.5-2.0	15	3270x1730x1800
19	12x3200	12	3200	9-25	0.5-2.0	15	3990x2250x2200
20	12x4000	12	4000	6-20	0.5-2.0	15	4720x2490x2500
21	12x5000	12	5000	7-20	0.5-2.0	22	5720x2600x2800
22	12x6000	12	6000	6-20	0.5-2.0	30	6720x2500x2550
23	12x7000	12	7000	6-20	0.5-2.0	37	7800x2600x3200
24	12x8000	12	8000	6-20	0.5-2.0	45	9100x2800x3400
25	12x10000	12	10000	4-18	0.5-2.0	55	11100x3200x3900
26	12x12000	12	12000	4-18	0.5-2.0	2x37	13200x3950x4800
27	16x2500	16	2500	9-20	0.5-2.5	22	3320x2100x2200
28	16x3200	16	3200	8-20	0.5-2.5	22	4120x2150x2300
29	16x4000	16	4000	8-15	0.5-2.5	22	4760x1900x2560
30	16x5000	16	5000	7-15	0.5-2.5	30	5760x2200x2750
31	16x6000	16	6000	6-15	0.5-2.5	37	6880x2480x3000
32	16x8000	16	8000	5-15	0.5-2.5	55	9120x3000x3800
33	16x10000	16	10000	4-15	0.5-3.0	2x37	11200x3400x4000
34	16x12000	16	12000	3-12	0.5-3.0	2x45	13300x4300x5800
35	20x2500	20	2500	7-20	0.5-3.0	30	3300x2050x2440
36	20x3200	20	3200	6-20	0.5-3.0	30	4000x2160x2540
37	20x4000	20	4000	5-15	0.5-3.0	30	4930x2300x2710
38	20x5000	20	5000	4-15	0.5-3.0	55	5860x2400x3150
39	20x6000	20	6000	4-15	0.5-3.0	55	6100x2650x3375
40	20x8000	20	8000	4-15	1.0-2.5	2x37	9120x3400x3800
41	20x10000	20	10000	4-14	1.0-2.5	2x45	11200x4300x5800
42	20x12000	20	12000	3-12	1.0-2.5	2x55	13380x4500x6100
43	25x2500	25	2500	6-15	1.0-3.5	37	3300x2000x2650
44	25x3200	25	3200	5-15	1.0-3.5	37	3970x2100x2865
45	25x4000	25	4000	4-12	1.0-3.5	45	4780x2500x3150
46	25x5000	25	5000	4-12	1.5-3.5	55	6100x2880x3550
47	25x6000	25	6000	3-12	1.5-3.0	55	7200x3000x3850
48	25x8000	25	8000	3-12	1.5-3.0	2x37	9300x3500x4300
49	30x2500	30	2500	4-12	1.5-3.5	55	3500x2300x3200
50	30x3200	30	3200	4-12	1.5-3.5	55	4380x2600x3450
51	30x4000	30	4000	3-12	1.5-3.5	55	5300x3000x3600
52	30x6000	30	6000	3-12	1.5-3.0	2x37	7300x3800x4200
53	40x2500	40	2500	4-10	2.0-4.0	55	3900x2550x3500
54	40x3200	40	3200	3-10	2.0-4.0	55	4600x2900x3750
55	40x4000	40	4000	3-10	2.0-4.0	2x45	5380x3300x4200
56	50x2500	50	2500	3-10	2.0-4.0	2x55	4000x3300x4200
57	50x3200	50	3200	3-10	2.0-4.0	3x90	4700x3600x4500
58	60x3200	60	3200	2-8	2.0-4.0	4x90	4900x3800x4900

2,Features of this machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine
3.Machine key components list

No.	Name	Brand	Location
1	Motor	Siemens	Germany
2	Electrics	SCHNEIDER	France
3	Oil Cylinder	Huatong	Wuxi, China
4	Seal ring	NOK	Japan
5	Pump	Lifeng	China
6	Hydraulic system	Bosch	Germany
7	Valves	Bosch	Germany
8	Controller	Estun E21	China Estun
Equipment's working environment: 2.1 Power supply:3Ph AC 220V ± 10% 60HZ ± (optional to site) 2.2 ambient temperature:-10 ºC ~ 45 ºC 2.3 Relative Humidity: ≤ 85% The back gauge structure(our patent)

We can also change the components according to your demand.
4.Attachment With the machine

No	Items	parameters	remarks
1	Upper Down blade	2	set
3	Bolt &Nut	8
4	feet nut washer	4
5	Allen wrench&Grease Gun	1 set	3 to 14 mm (maintenance tool)
6	technical documents	certificate of the product, including operation and maintenance manual, electrical, hydraulic schematics, purchased parts inventory, basic maps, packing list.

Detailed Photos:
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit.
FAQ: Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no,very safe.

---
