Cost Effective Low Maintenance Cost Laminate Flooring Click Profile Machine Double End Tenoner

Product Description

Equipment parameters

	Feeding roller conveyor	Longitudinal (Model:DTL/10D)	Power-driven belt conveyor(middle)	Transverse Model(DT5/25/10D)
Workpiece width		120-400(600)mm		400-1500mm
Working thickness		6-15mm		6-15mm
Table size	300*2400mm		300*2400mm
Height of working table	400mm	1100mm	400mm	950mm
Rotate speed of cutter shaft		6000-7000 rpm		6000-7000 rpm
Motor power of cutter shaft(Inverter control) (each left and right)		The 1st station:8kw The 2nd station:8kw The 3rd station:5.5kw The 4th station:8kw The 5th station:5.5kw		The 1st station:5.5kw The 2nd station:5.5kw The 3rd station:3kw The 4th station:5.5kw The 5th station:3kw
Feeding speed	40-80m/min	40-80m/min	40-80m/min	15-40m/min
Feeding motor power	1.1kw	5.5kw (Inverter control)	1.1kw	3.7kw (Inverter control)
Blower motor power		2.2kw*2
Width adjusting motor		1.1kw		1.1kw
Cutter diameter		φ220-250xφ40mm		φ220-250xφ40mm

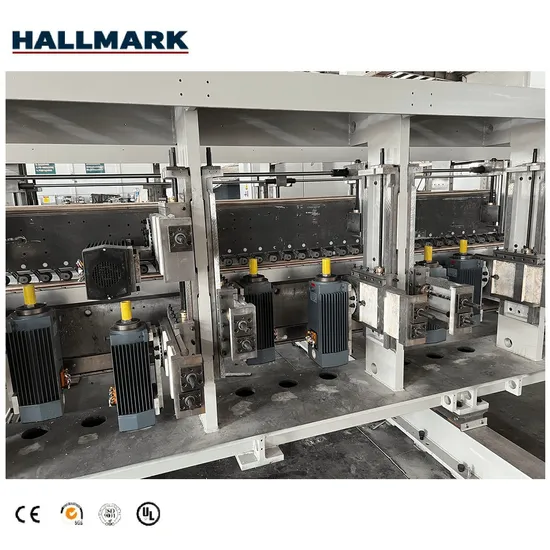

Product Description Double end Tenoner for Laminate Flooring
Cutting machine cut big board into some small boards, and the double end tenoner machine make the click profile continuously.With automatic loading and unloading system ,save labor,improve productivity. Double end tenoner
adopts
the whole frame structure, upper pressing belt use active, stable performance and reliable quality, this machine
process
capability is improved greatly. Easy operation and safe reliability.High efficiency, high precision and low noise.
Equipment details list
About us
HALLMARK INTERNATIONAL GROUP LIMITED HallMark is a professional manufacturer in flooring industry with 15 years experience,have own factory and richexperience.Products are sold to more than 50 countries around the world,such as Russia, Turkey, Egypt, Algeria,South Africa,Iran,India,Malaysia,Vietnam.The main products of our company are laminated flooring and SPC flooring production line, and othernon-standardcustomized equipment in the construction/wall panel/furniture industry.We can not only provide the aboveproduction lines, but also provide a complete set of solutions and technical consulting services.We provide one-stop supply and service for you ,from the raw material to machine design , production,installation, commissioning,staff training, and after-salesservice,also provide the turnkey solution. To provide customers with high-qualityproducts,reasonable prices,timely and professional services to meet the various needs of customers.HallMark firmly believes that transaction is not the end, but the beginning of service. Packing and delivery
Certifications
Exhibition experience
FAQ 1. Rich experience and professional design
We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment
location,passage will be designed reasonably to meet safety production.
2. Competitive price
HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,oursuppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the
installationand debugging of the flooring production line until it runs well,and asked for quick responses to customer
questions within 8 hours. 4. One-stop solution
HallMark provide one-stop service, including market analysis and professional technical consultation,whole
SPC flooring productionline, raw materials ,equipment installation, personnel training,Professional after-sales service team,Renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management
system for purchased parts.Customers are always welcome to make videos or come to the factory to know the
production status.
6. Customized
HallMark's engineer team will design the layout according to customer's factory space and production requirements.

---
