Mini WiFi Sharing for Indoor or Outdoor CPE

US$110.00-160.00 1 Piece (MOQ)

Basic Info.

Model NO.
HMF300
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Modular
Application
Enterprise, SOHO
Performance
Non Line Speed Router
Architecture
Multi Bus Mmulti CPU
Transport Package
Carton Package
Specification
140mm*70mm * 20mm
Trademark
Ex-link, ODM OEM
Origin
China
Production Capacity
50K/ Month

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg

Product Description

Product Description 5G Mini WIFI sharing for indoor or outdoor CPE
EX-LINK HMF300 portable router is a wireless communication product developed based on 3G/4G LTE/5G network requirements. Supports 3G/4G LTE/5G global frequency bands. Supports 3G/4G LTE/5G internet high speed access. Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. 5G SA maximum 2.4Gbps (DL)/1Gbps (UL) access bandwidth service. Supports 802.11AX WIFI 6E, 2.4GHz/5GHz/6GHz function. And provide users with WIFI 6E, AX3600 large bandwidth hot spot sharing. Meet the access and sharing of more than 32 users' WIFI hot spot. Meet the needs of families, tourism, enterprises and chain stores to provide 4G/5G high-speed Internet access services.
Product features.
Wireless Mobile Broadband 3G/4G LTE/ 5G connection. Supports 3G/4G/5G global frequency bands.
Compliant with IEEE 802.11a/b/g/n/ac/ax,AX3600,2*2 MIMO WIFI 6E, support 2.4 GHz/5 GHz/6GHz .
System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
Supports Multiple VPN tunnels for data encryption .
Power supply. DC 5V/2.5A
ABS plastic material shell. Novel and fashionable appearance.
Easy to use and easy maintenance
User friendly web interface for user interaction.
Supports Central Management Platform.
Supports local web UI and remote FOTA update firmware.
Operating system

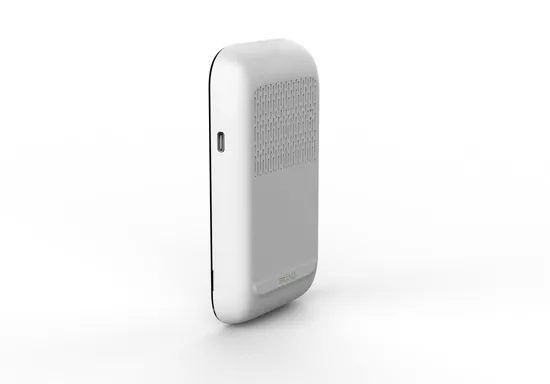

Built-in OpenWRT 19.07 operating system. Detailed Photos
Product Parameters
Cellular feature
3G/4G/5G
data connectivity
It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks.
3G/4G/5G
Frequency bands
• Version E
5G NR:
5G NSA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79
5G SA:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79
LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD:B38/B39/B40/B41/B42/B43/B46*/B48
WCDMA: B1/B5/B8
• Version A
5G NR:
5G NSA:n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79
5G SA:n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
LTE FDD:B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD:B38/B41/B42/B43/B46*/B48
WCDMA: B1/B2/B4/B5
Remarks. More frequency bands or requirements please contact with us.
3G/4G/5G
Data rates
5G NSA. Max 3.4Gbps (DL)/600Mbps (UL)
5G SA. Max 2.4Gbps (DL)/1Gbps (UL)
LTE. Max 1.6Gbps (DL)/200Mbps (UL)
HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL)
WCDMA Max 384Kbps (DL)/384Kbps (UL)
5G NR features 3GPP Release 16
Supported modulations:
- Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM
- Downlink: QPSK, 16QAM, 64QAM and 256QAM
Supported SCS: 15 kHz 2 and 30 kHz 2
SA 3 and NSA 3 operation modes supported on all the 5G band
Option 3x, 3a, 3 and Option 2
Maximum transmission data rates 4:
- NSA: 3.4 Gbps (DL)/ 550 Mbps (UL)
- SA: 2.4 Gbps (DL)/ 900 Mbps (UL)
LTE features 3GPP Release 16
LTE Category: DL Cat 19/ UL Cat 18
Supported modulations.
- Uplink: QPSK, 16QAM and 64QAM and 256QAM
- Downlink: QPSK, 16QAM and 64QAM and 256QAM
Supports 1.4/3/5/10/15/20 MHz RF bandwidth
Maximum transmission data rates . - 1.6 Gbps (DL)/ 200 Mbps (UL)
UMTS features 3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA.
Supported modulations. QPSK, 16QAM and 64QAM
Maximum transmission data rates.
- HSPA+. 42 Mbps (DL)/ 5.76 Mbps (UL)
- WCDMA. 384 kbps (DL)/ 384 kbps (UL)
3G/4G/5G
Receiving Sensitivity
5G NR-FDD n1(20MHz), -94.3 dBm
5G NR-FDD n2(20MHz), -94.3 dBm
5G NR-FDD n3(20MHz), -94.5 dBm
5G NR-FDD n5(10MHz), -95.5 dBm
5G NR-FDD n7(20MHz), -94.7 dBm
5G NR-FDD n8(20MHz), -96.2 dBm
5G NR-FDD n12(15MHz), -96.7 dBm
5G NR-FDD n13(10MHz), -97.6 dBm
5G NR-FDD n14(10MHz), -98.7 dBm
5G NR-FDD n18(15MHz), -98 dBm
5G NR-FDD n20(20MHz), -96.9 dBm
5G NR-FDD n25(20MHz), -94.6 dBm
5G NR-FDD n26(20MHz), -95 dBm
5G NR-FDD n28(20MHz), -96 dBm
5G NR-FDD n30(10MHz), -95.4 dBm
5G NR-TDD n38(20MHz), -93.4 dBm
5G NR-TDD n40(20MHz), -93.8 dBm
5G NR-TDD n41(100MHz), -85.8 dBm
5G NR-TDD n66(40MHz), -92.3 dBm
5G NR-TDD n71(20MHz), -96.5 dBm
5G NR-TDD n77(100MHz), -87.4 dBm
5G NR-TDD n78(100MHz), -87.8 dBm
5G NR-TDD n79(100MHz), -87.2 dBm
LTE-FDD B1(10MHz) , -97.3 dBm
LTE-FDD B2(10MHz) , -97.8 dBm
LTE-FDD B3(10MHz) , -97.6 dBm
LTE-FDD B4(10MHz) , -98.2 dBm
LTE-FDD B5(10MHz) , -100.3 dBm
LTE-FDD B7(10MHz) , -97.1 dBm
LTE-FDD B8(10MHz) , -99.7 dBm
LTE-FDD B12(10MHz) , -100.8 dBm
LTE-FDD B13(10MHz) , -98.7 dBm
LTE-FDD B14(10MHz) , -99.5 dBm
LTE-FDD B17(10MHz) , -100.3 dBm
LTE-FDD B18(10MHz) , -100.3 dBm
LTE-FDD B19(10MHz) , -100.3 dBm
LTE-FDD B20(10MHz) , -100.5 dBm
LTE-FDD B25(10MHz) , -97.7 dBm
LTE-FDD B26(10MHz) , -100.3 dBm
LTE-FDD B28(10MHz) , -99.7 dBm
LTE-FDD B29(10MHz) , -98.2 dBm
LTE-FDD B30(10MHz) , -97.3 dBm
LTE-FDD B32(10MHz) , -97.3 dBm
LTE-FDD B66(10MHz) , -98 dBm
LTE-FDD B71(10MHz) , -99.7 dBm
LTE-TDD B38(10MHz) , -95.7 dBm
LTE-TDD B39(10MHz) , -98.7 dBm
LTE-TDD B40(10MHz) , -96.6 dBm
LTE-TDD B41(10MHz) , -95.7 dBm
LTE-TDD B42(10MHz) , -96.8 dBm
LTE-TDD B43(10MHz) , -97.1 dBm
LTE-TDD B46(10MHz) , -96.2 dBm
LTE-TDD B48(10MHz) , -96.9 dBm
WCDMA B1 , -109 dBm
WCDMA B2 , -109 dBm
WCDMA B4 , -110 dBm
WCDMA B5 , -111 dBm
WCDMA B8 , -112dBm
3G/4G/5G
Transmitting Power
Class 3 (24dBm+1/-3dB) for WCDMA bands.
Class 3 (23dBm±2dB) for LTE-FDD bands.
Class 3 (23dBm±2dB) for LTE-TDD bands.
Class 3 (23dBm±2dB) for 5G NR bands.
Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands.
Class 2 (26dBm±2dB) for 5G NR n41/n77/n78/n79 bands .
Antennas 4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance.
SIM card feature
SIM card
Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )
Hard
ware feature
CPU Qualcomm SDX62, ARM Cortex - A7, 1.8GHz
MEMORY NAND FLASH 4Gb, LPDDR4X 4Gb
Hardware interface 1*USB3.1 port
Watchdog Built-in watchdog feature.

Key button
Power key, Reset
LED status indicator Battery, 5G, WIFI
Power Supply
Power supply input. DC 5V/2.5A
Peak current Max current. 2.5A @5V
Working current Max 450 mA, 5.4W @5 V
Power Consumption Idle. 170mA, 0.85W @5 V
Data link. Max 750 mA, 3.75W @5 V
Peak. Max 1.5A , 7.5W @5V
Temperature Operating Temperature 0 ºC ~+50ºC, Storage Temperature -10~+55ºC
Environment humidty 5%~95% ,no condensation.
Ingress Protection IP30
Housing ABS plastic material, white or gray shell.
Dimensions 140mm*70mm * 20mm
Installations Desktop placement
Weight 280g
Wi-Fi 6E
WLAN IEEE 802.11 a/b/g/n/ac/ax, AX3600 , WIFI 6E . Max bandwidth 2974Mbps
Supports 2.4GHz/5GHz/6GHz WIFI 6E.
Supports Dynamic Frequency Selection (DFS, radar detection).
Supports 20 MHz/40 MHz channel bandwidth for 2.4 GHz and 20 MHz/40 MHz/80 MHz/160 MHz channel bandwidth for 5 GHz.
Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).
Wireless Mode Supports AP mode.
Wireless Security Supports WPA, WPA3,WPAI, WEP, TKIP encryption.
WIFI Modulation Supports DSSS (1/2Mbps),CCK(1/2/5.5/11Mbps),OFDM(6/9/12/18/24/36/48/54Mbps),OFDM technology combined with BPSK,QPSK, 16-QAM,64-QAM,256-QAM,1024-QAM,4k-QAM,820.11b adopts CCK and DSSS modulation technology.
Transmission Data Rates 802.11b:1,2,5.5,11Mbps
802.11g\a:6,9,12,18,24,36,48,54Mbps
802.11n_HT20:MCS0~MCS7
802.11n_HT40:MCS0~MCS7
802.11ac_HT20: MCS0~MCS8
802.11ac_HT40: MCS0~MCS9
802.11ac_HT80: MCS0~MCS9
802.11ax_HT20: MCS0~MCS11
802.11ax_HT40: MCS0~MCS11
802.11ax_HT80: MCS0~MCS11
802.11ax_HT160:MCS0~MCS13
WIFI transmit power 2.4GHz, 802.11b/11Mbps:17.03dBm
2.4GHz, 802.11g/6Mbps:15.56dBm
2.4GHz, 802.11g/54Mbps:12.92dBm
2.4GHz, 802.11n,HT20@MCS0:15.71dBm
2.4GHz, 802.11n,HT40@MCS0:15.69dBm
2.4GHz, 802.11n,HT20@MCS7:13.31dBm
2.4GHz, 802.11n,HT40@MCS7:13.42dBm
2.4GHz, 802.11ax,HE20@MCS11:9.68dBm
2.4GHz, 802.11ax,HE40@MCS11:9.93dBm
5GHz, 802.11a@6Mbps:15.77dBm
5GHz, 802.11a@54Mbps:14.47dBm
5GHz, 802.11n,HT20/MCS0:16.65dBm
5GHz, 802.11n,HT40/MCS0:16.92dBm
5GHz, 802.11n,HT20/MCS7:14.41dBm
5GHz, 802.11n,HT40/MCS7:14.21dBm
5GHz, 802.11ac,HT20/MCS8:16.65dBm
5GHz, 802.11ac,HT40/MCS9:14.64dBm
5GHz, 802.11ac,HT80/MCS9:14.25dBm
5GHz, 802.11ax,HT20/MCS11:10.5dBm
5GHz, 802.11ax,HT40/MCS11:10.57dBm
5GHz, 802.11ax,HT80/MCS11:11.29dBm
5GHz, 802.11ax_HE160/MCS13:8dBm
WIFI Rx Sensitivity 2.4GHz, 802.11b@11Mbps:-89.4dBm
2.4GHz, 802.11g@6Mbps:-93.6dBm
2.4GHz, 802.11g@54Mbps:-75.8dBm
2.4GHz, 802.11n/ac@HT20-MCS0:-93.7dBm
2.4GHz, 802.11n/ac@HT20-MCS7:-74.6dBm
2.4GHz, 802.11n/ac@HT40-MCS0:-89.7dBm
2.4GHz, 802.11n/ac@HT40-MCS7:-70.2dBm
2.4GHz, 802.11ac@VHT20-MCS7:-70.2dBm
2.4GHz, 802.11ax@HE20-MCS0:-96.7dBm
2.4GHz, 802.11ax@HE20-MCS11:-65.4dBm
2.4GHz, 802.11ax@HE40-MCS0:-93.6dBm
2.4GHz, 802.11ax@HE4 0-MCS11:-63.4dBm
5GHz, 802.11a@6Mbps: -96.3dBm
5GHz, 802.11a@54Mbps: -78.8dBm
5GHz, 802.11n@HT20-MCS0: -95.7dBm
5GHz, 802.11n@HT20-MCS7: -76.7dBm
5GHz, 802.11n@HT40-MCS0: -92dBm
5GHz, 802.11n@HT40-MCS7: -73.5dBm
5GHz, 802.11ac@VHT20-MCS8: -72.5dBm
5GHz, 802.11ac@VHT40-MCS9: -68dBm
5GHz, 802.11ax@HE20-MCS0: -97dBm
5GHz, 802.11ax@HE20-MCS11: -65dBm
5GHz, 802.11ax@HE40-MCS0: -93dBm
5GHz, 802.11ax@HE40-MCS11: -63dBm
5GHz, 802.11ax@HE80-MCS0: -90dBm
5GHz, 802.11ax@HE80-MCS11: -61dBm
5GHz, 802.11ax@HE160-MC0S: -89dBm
Antennas 2*2 MIMO nternal antenna , with 50 Ω impedance.
WIFI hotspot sharing Supports more than 32 users to share WIFI access to the Internet.
Software feature
Parameter settings Supports automatic detection of MNC and MCC parameters of global operators. Built-in global operator APN, user name, password and other network parameters. At the same time, manual setting of network parameters is supported.
Dial method After the device is powered on, the system automatically dials up to connect to the network.
Protocol Supports PPTP,L2TP,IPSEC VPN,GRE,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH etc protocol.
Routing Supports static routing, multiple routing tables.
Bridge Supports 4G/5G bridge mode feature.
Multiple APN Supports multiple APN access network.
System Assurance Supports system automatic detection mechanism, automatic recovery of system abnormality or crash.
Data Link Assurance Built-in link maintenance and self-recovery mechanism.
Firewall Support flexible access control of TCP, UDP, ICMP packets.
Supports port Mapping, NAT etc feature.
DDNS Supported some service providers, others can be configured manually.
Firmware update Supports local WebUI and remote OTA update firmware.
VLAN Supports VLAN feature.
Embedded system
OpenWRT 19.07
Application development Supports secondary development of application functions based on our device motherboard software.
VPN
VPN Feature Supports Open VPN, IPSEC VPN,PPTP,L2TP etc VPN feature.
MONITORING & MANAGEMENT
Web GUI HTTP, Firmware Upgrade
Command Line Interface SSHv2
Management platform Remote Management Platform
Product Description
Product Name portable wifi 4g and 5g router sim card slot wireless wifi hotspot wifi 6e pocket wifi
WIFI 802.11AX WIFI 6E, 2.4GHz/5GHz/6GHz function
Function 5G Portable WIFI hotspot
Operating system OpenWRT 19.07

>> Good Quality Factory Price Cylindrical Grinding Machine M1420 Hydraulic Surface Grinding
>> 4.0 Cbm Self Loading Concrete Mixer Truck with 4X4 Drive and Diesel Power
>> Anyjet Coding Machine Small Character Inkjet Printer Cij Printer
>> Manufacturers Sell High Quality Three-Phase Voltage Regulator
>> CNC Automatic Laser Cutting Machine for Fully Enclosed and Enclosed Cutting 1500W 2000W 3000W 6000W for Cutting Metals, Carbon Steel, Stainless Steel, Aluminum
>> New Sport 60V72V Long Range Electric Motorcycle
>> Good design pvc frame tempered glass sliding window upvc windows with double glaze
>> High Quality Integrated Driver Mini Stepper Motor Linear Actuator
>> Small Pelletizer Granulator for Paraffin Wax Granules Making Granulation Machine
>> 150-3000L Sausage Meat Mixer/Vacuum Mixing Machine/Stainless Steel Meat Mixer
>> Taiwan Spindle CS61100 CNC Lathe After-Sales Improvement Advanced Technology High Precision Manual Turning Machine
>> ABB OCAHG 492838402 Controller brand new
>> Megain Tn760 Dr730 Compatible High Quality Toner for L2325dwl2350dw Laser Toner Cartridge
>> Paper Mill Polyester Woven Flat Yarn Round Spiral Sldf Dryer Screen Mesh Wire Fabric for Tissue Toilet Paper Making Machine
>> Toilet Tissue Paper Cutting and Rewinding Machine Maxi Roll Making Machine Production Line
>> Paper Core Winding Machine
>> Plastic PA Nylon Trimmer Line Making Machine Pet Monofilament Extruder for Rope
>> High End Korean Style Compressor Cooling Water Dispenser
>> 235/55r19 Original Air-Tight Used Tyre with Guarantee
>> Batch Production Corrosion Resistant Nano Bead Mill for Paints Coating Ink
