Paper Mill Polyester Woven Flat Yarn Round Spiral Sldf Dryer Screen Mesh Wire Fabric for Tissue Toilet Paper Making Machine

Product Description

Product Description Flat yarn dryer screen's application in paper machine:
Polyester dryer fabric is made with the latest non-woven technology and equipment in the world. Polyester material is one of the most advanced drying and filtration materials in the world. Polyester screw dry net adopts high-quality anti-hydrolysis polyester mono-filament, which is formed by forming, weaving, finishing, and shaping. It has unique properties:
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.

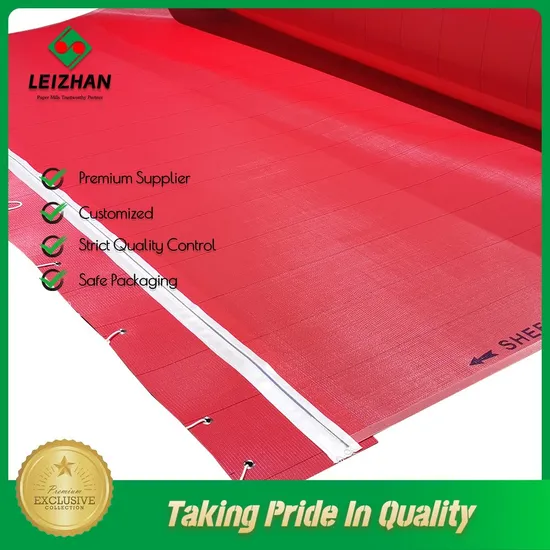

Detailed Photos
Product Parameters

Polyester Dryer Fabric
Weaving Kind	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength(N/cm)			Air Permeability		Weight Kg/m2	Thickness mm
		Warp	Weft	Warp	Weft	Surface	Joint	Socket Screw-ring interface	M3/m2h	CFM
Flat wire dryer fabric	4106-2	0.35x0.68	0.50	19.6	15.7	2200	1500	900	5500	345	1.10	1.62
	15505	0.25x0.40	0.50	17	13.5	2000	1500	900	6500	406	0.75	0.83
	20654	0.33x0.52	0.65	22	7.5	2000	1400	800	10000	625	1.02	1.35
	18688	0.30x0.58	0.35	20	18.5	2000	1400	800	1600	100	1.2	1.40
			0.68
	16904	0.29x1.06	0.90	15.2	8.6	2600	1800	1500	1920	120	1.33	1.54
			0.98

Round Dryer Fabric Round yarn dryer screen's application in paper machine:
It is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced.
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.

Polyester Dryer Fabric
Weaving Kind	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength(N/cm)			Air Permeability		Weight Kg/m2	Thickness mm
		Warp	Weft	Warp	Weft	Surface	Joint	Socket Screw-ring interface	M3/m2h	CFM
Round wire Dryer fabric	22503	0.50	0.50	24	12	2000	1400	900	8000	500	1.06	2.0
	24503		0.50	25	12	2000	1400	900	7000	438	1.10	2.0
	22504		0.50	24	12	2000	1400	900	12000	750	1.26	2.1
	24504		0.50	26	12	2100	1500	950	11000	680	1.3	2.1
	4106		0.50	23	12.6	2200	1500	900	6800	425	1.2	1.75
	4106-1		0.30 / 0.70	22.8	12.6	2200	1500	900	8000	500	1.3	1.80
	26508	0.35	0.50	28	12.5	1680	1400	800	4640	290	0.82	1.1

Spiral Dry Fabric Description Paper Making Dryer Fabric :Dryer fabric is a drying part of a wet paper web. The conventional drying system can dry the wet web from 60% moisture to 2% moisture with the help of drying fabrics. drying fabrics play an important role in giving a final shape and parameters to the paper drying fabrics also known as conveyor Belts.Spiral dryer screen's application in paper machine:1) Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets, and single whiteboard paper:
2)Instead of a dry blanket, the canvas of paper machine drying:
3)Also widely used in printing and dying, food, salt industry, pharmacy, environment protection, etc.

Type	Spiral loop width mm	Filament diameter (mm)		Tensile strength N/cm	Weight Kg/m²	Thickness mm	Air permeability m³/m²h	CFM 127Pa
		Spiral ring monofilament	Connection Wire
5080A	5.2	0.50	0.80	1800	1.00	2.10	15000	937
Red 6280A	5	flat wires 62/30	0.80	1600	0.90	1.90	13000	820
6890A	8	0.68	0.90	2000	1.31	2.45	18000	1125
6890B	7.15	0.68	0.90	2000	1.40	2.45	16000	1000
7090B	7.5	0.7	0.90	2200	1.45	2.60	16500	1031
70100B	7.2	0.7	1.00	2200	1.50	2.54	16800	1050
Red 9090A1	8	flat wires 0.9*0.60	0.90	1800	1.60	2.80	17000	1060
9090A2	8	0.90	0.90	2300	1.80	3.03	19000	1188
