PP PE LDPE LLDPE Soft Film Plastic Screw Press Drying Squeezer (RS-350)

Product Description

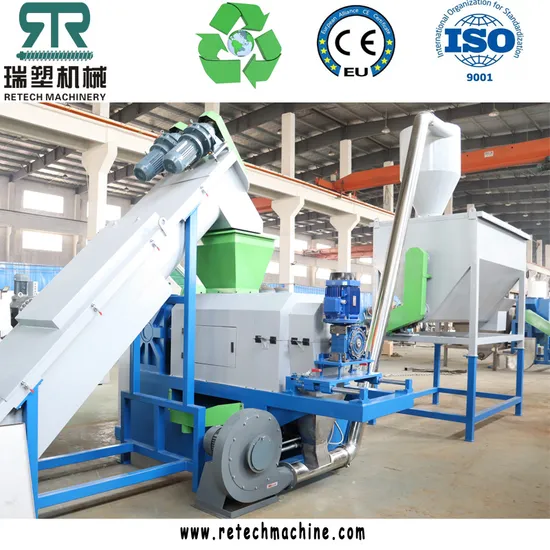

PP PE LDPE LLDPE Soft Film Plastic Screw Press Squeezer(RS-350)
Product Description
This is new type film-squeezing machine which is designed by our RETECH Machinery.It is use to squeezing&dehydration principle,after raw material(Ldpe agriculture film,LLDPE strength film,and pp woven/big bags,etc)crushing and washed,this squeezer machine can quickly and effectively remove the water.It is easy to increase the subsequent granulating line production capacity.
Our PP PE film squeezer is a full automatic Squeezing & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.
This Wet Plastic Squeezer Drying Machine for Washed Plastic LDPE/LLDPE Film is used for drying those washed film, woven bags.etc. and make it like granules. After that the granules can put into our extruder directly.
Detailed Photos
Product Parameters

Model/Squeezer	Motor power	Capacity(PP PE Film)
TSD300	75kw	300kg/h
TSP300	75kw	250kg/h
TSD400	90kw	400kg/h,
TSP400	90kw	320kg/h
TSD500	110kw	500kg/h
TSP500	110kw	460kg/h
TSD800	132kw	880kg/h
TSP500	132kw	750kg/h
TSD1000	165kw	1200kg/h
TSD1000	165kw	980kg/h

Certifications
Packaging & Shipping
Features
(1)The PP PE film squeezing machine adopt screw pushing pressing and heating plasticizing theory to remove and dry wet film flakes from the PE PP film and bags washing recycling machines. It could apply for plastic PE PP film, agriculture film, PP raffia woven bags, woven sack, jumbo bag, and other plastic film material drying. It is a kind idea equipment to realize removing and drying the wet film quickly.
(2)The machine equipment special alloy steel screw and barrel, hard teeth gearbox, net, cutter and blowing system, which is a kind of automatic machine to dry the PE HDPE LDPE LLDPE PP PET film efficiently.
(3)Because of adopting screw squeezing and electric heating both drying way, it could remove the moisture high efficient, good plastic plasticizing and with high capacity.
(4)The squeezer is easy to operate and maintenance, drying perform excellent, could make the final material moisture level lower than 3%, which is a real ideal product for plastic recycling business, especially good help for material next granulating to improve the capacity.
(5)The capacity of the squeezer could be customized.
Solution
1. Low power consumption.Main motor power between 90kw-185kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine +drying pipe system, can save electric consumption 40-50%2. Small land occupied.3. Low rotation speed, almost no noise.4. Dewatering function is better, final products humidity less than 2%.5. Can greatly increase the subsequent granulating line production capacity.
Our Advantages
Our company also offer plastic horizontal/vertical dewatering machine/ plastic centrifugal dryer(details see below):
Horizontal Dewatering Machine: Horizontal dewatering machine in Plastic washing line: Main power 37kw/45kw/75kw/110kw
Rotation speed 1500rpm
Bearing brand NSK
Capacity(kg/h) 300-2000kg/h
Thickness of inside sieve:3mm
Inside equipped with device,automatic cleaning inner sieve
Main shaft through dynamatic balance treatment
Final products(PET/HDPE rigid flakes)humidity below1%;pe/pp film humidity below 5%
Main shaft Made of stainless steel
Usage:This horizontal dewatering machine (centrifugal dryer)can delete the water of PP PE film/flake,PET flake and make them dry.The high rotation speed (reach 1500 rpm)can delete 98% of water in film .
About RETECH:
Retech Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....We've been on this industry for 15 years.
If you are interesting more details of our products, please contact with us no hesitation!

---
