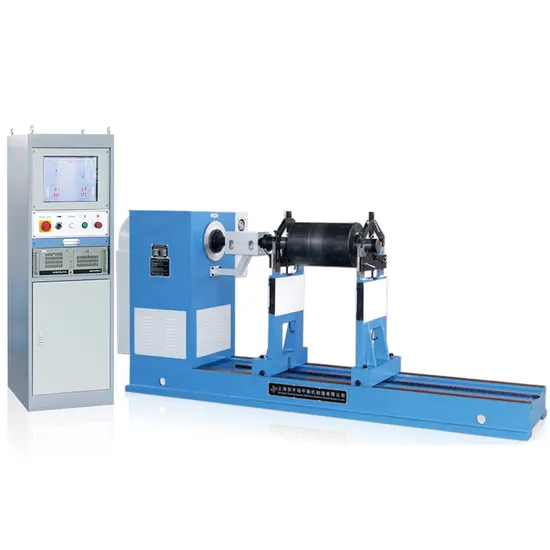

Fan Roller Impeller End Drive Balancing Machine

Product Description

Production Description
Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling, transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface
Delivery inspection
Range of Application
This balancing machine is mainly used in checking the balance of rotatable bodies such as medium-sized and large-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller. Drying cylinder. Ceramic machinery, rollers, rubber sticks, etc...Driven by universal joints, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. With wide speed range, large driving power, high precision and easy operation etc
Production Process-Mechanical parts
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Factory Outlook
Production Parameters

Technical data at a glance	PHW-1000	PHW-2000
Mass Scope of Workpiece (kg)	1000	2000
Max Diameter of Workpiece (mm)	1500	1800
Distance Between Two Support Bearings (mm)	Min:100	Min:100
Journal Diameter Scope of Workpiece (mm)	20~180	40~240
Max Distance between Driving Flange and Right Bearing Support (mm)	1500	1800
Rotation Speed of the Main Axis (r/min)	600,1095 +Stepless speed regulation	560,1490 +Stepless speed regulation
Motor Power (kw)	4 Frequency conversion	7.5 Frequency conversion
Torque of Universal Joint Shaft (N.m)	300	300
Min Achievable Residual Unbalance Amount (emar)	≤ 1g. mm/kg	≤ 1g. mm/kg
