Compact Swiss CNC Lathe with 210mm Stroke for Reliable Precision Work

Product Description

Product Description
Step into a world of limitless possibilities with the Swiss-style lathe, an iconic CNC automatic lathe that stands as a beacon of exceptional versatility in precision processing machinery. This engineering marvel effortlessly handles a diverse range of functions, including tapping, milling, drilling, and turning, all executed with remarkable precision. Outfitted with groundbreaking dual spindles and an innovative double Y-axis, this machine is a paragon of simultaneous processing, dramatically slashing processing times. Its formidable prowess is particularly evident in the batch production of intricate, non-standard parts, such as precision hardware and shafts, which demand specialized shaping solutions.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

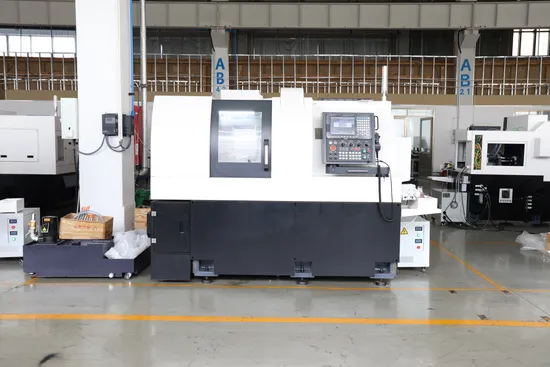

Detailed Photos
Application
Applications of Swiss Machining
Though Swiss machining took its first strides in the Swiss watchmaking industry, its remarkable capabilities have now permeated an array of sectors, revolutionizing industries with its cutting-edge technology. Beneficiaries of this technological evolution include:
1) Aerospace
The aerospace industry is significantly enhanced by the exquisitely crafted components produced through Swiss machining. Intricate aerospace parts, such as fans and fasteners, frequently emerge from these machines. With metals like aluminum alloys and steel, this process guarantees precision and durability, essential for aerospace standards.
2) Medical devices
In the medical sector, Swiss-type lathe technology is a cornerstone for creating delicate, high-precision components. This machining approach is pivotal in the production of surgical instruments and implants, underscoring its transformative influence on medical device manufacturing.
3) Electronics
As electronics evolve to be more compact and intricate, traditional lathes fall short, prompting a shift to advanced solutions like CNC Swiss machining. This method excels in crafting complex electronic components, such as connectors and pins, with outstanding precision and efficiency.
4) Automotive
The automotive industry harnesses Swiss machining solutions to propel the latest mechanical innovations forward. This cutting-edge technology is vital for creating smaller, more complex components that are critical to modern vehicles.
Auto manufacturers capitalize on this advanced technology to produce components like suspension parts, carburetor covers, and engine segments. The industry benefits immensely from reduced costs, optimized manufacturing processes, and accelerated production speeds, driving automotive excellence forward.
Our Advantages
1. Professional Supplier: Place your trust in our expert team, dedicated to delivering superior precision machinery solutions tailored to your unique needs.
2. Best Quality: Discover our unmatched quality standards that assure reliability and optimal performance, reflecting our unwavering commitment to excellence.
3. Best Service: Delight in our exceptional customer service, where your satisfaction takes precedence, ensuring a smooth and seamless experience from your initial inquiry to final delivery.
4. Best Price: Benefit from our competitively priced selections that offer exceptional value without compromising on quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
